Printheads
Important

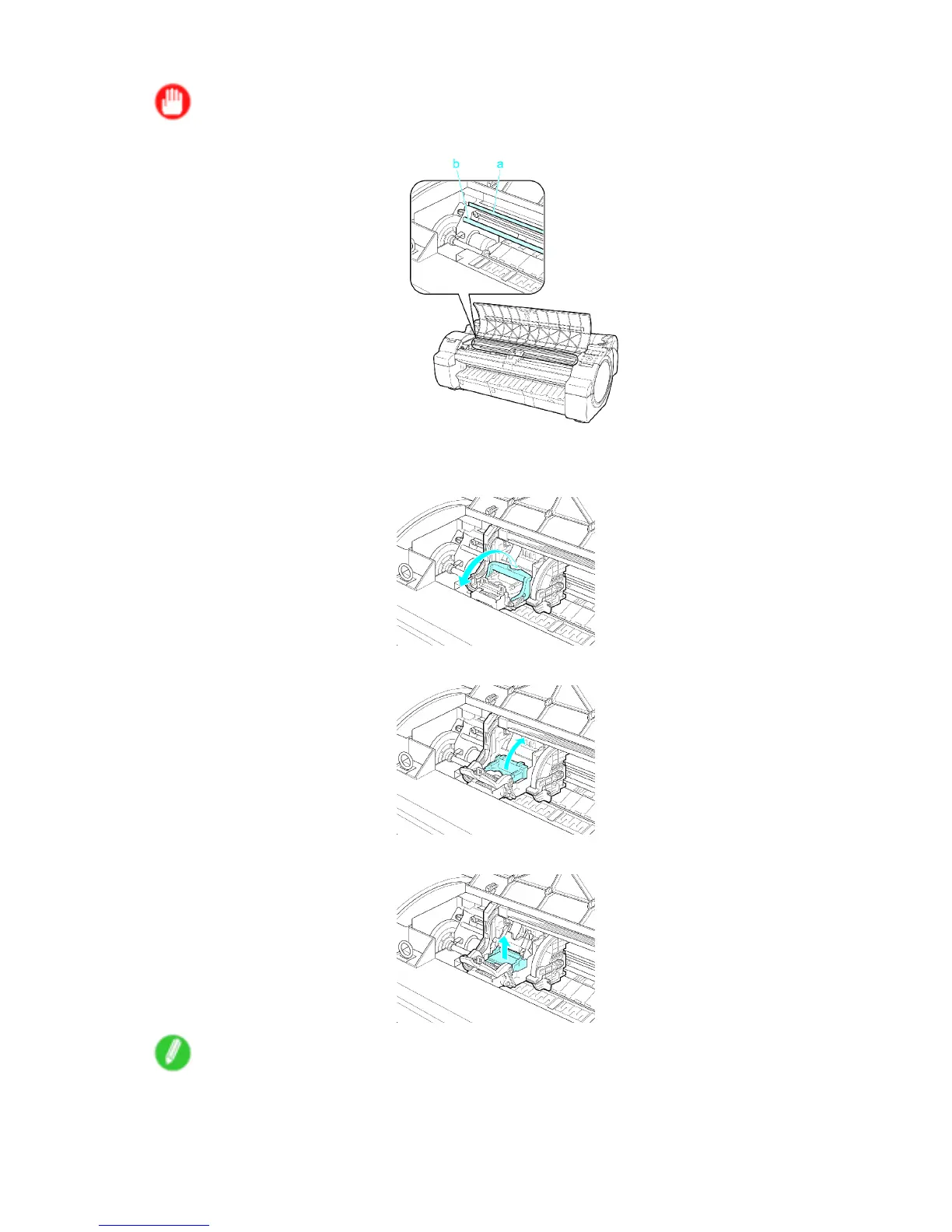

• Do not touch the Linear Scale (a) or Carriage Shaft (b). T ouching these parts may damage them.
• Never touch the metal contacts of the Carriage . This may damage the printer .
3. Pull the Printhead Fixer Lever forward all the way to open it completely .
4. Pull up the Printhead Fixer Cover to open it completely .
5. Remove the Printhead and press the OK button.
Note
• Dispose of the used Printhead in accordance with local regulations.
636 Maintenance
