Other Maintenance

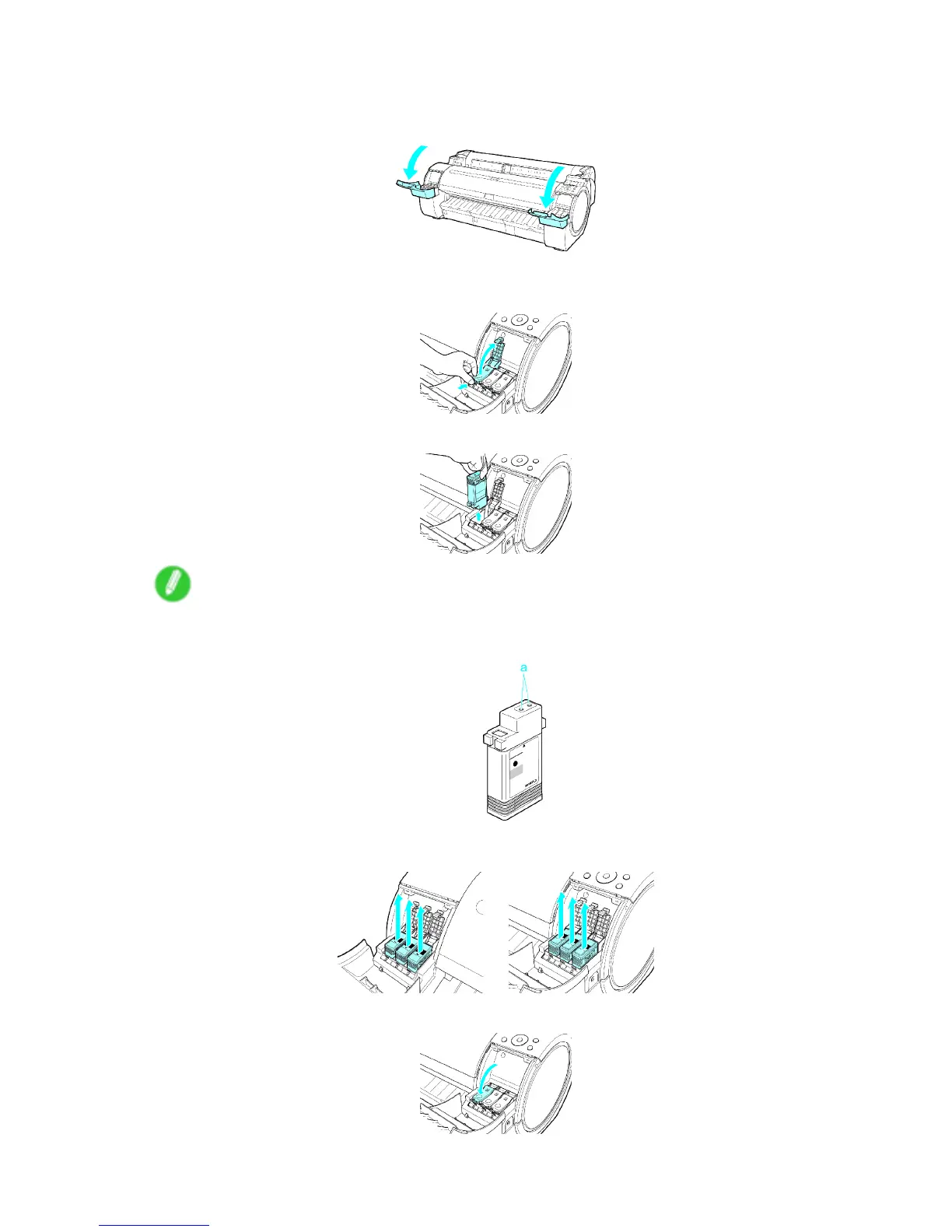

Remove the Ink T ank
1. Open the Ink T ank Cover .
2. Pressing the tip of the Ink T ank Lock Lever horizontally , lift the Ink T ank Lock Lever to release the
lock.
3. Holding the ink tanks by the grips, remove them.
Note
• Store the ink tanks you removed with the ink holes (a) facing up. Otherwise, ink may leak and
cause stains.
4. Repeat steps 2 and 3 to remove all ink tanks.
5. Push all ink tank lock levers closed until they click into place.
652 Maintenance
