Chapter 3ޓ
3-52

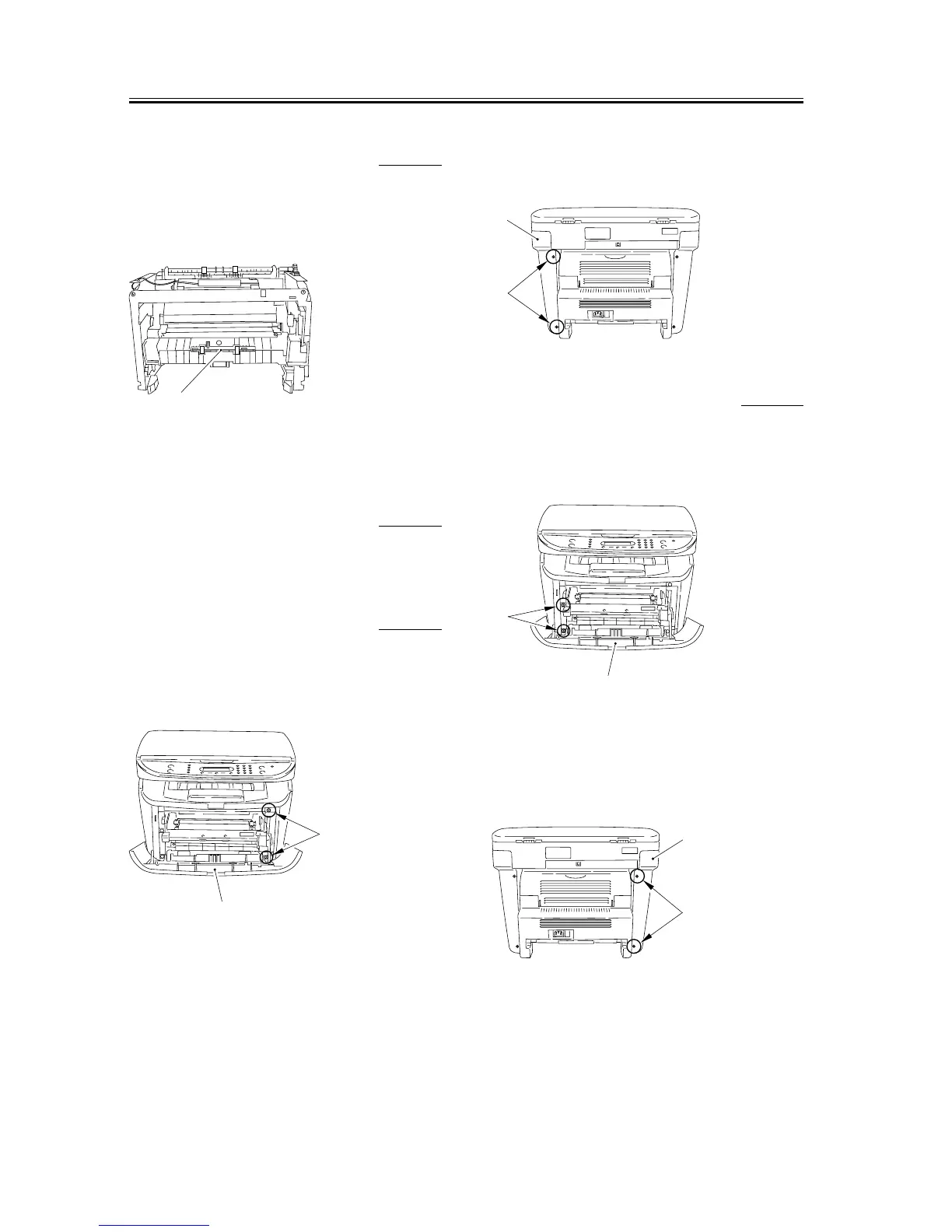

3.5.4.17 Removing the Paper
Feed Roller
0007-7857
1) Lift the left side of the paper feed roller [1], and
slide it to detach.
F-3-206
3.5.5 Manual Pickup Solenoid
3.5.5.1 Removing the Cassette 0002-7106
1) Remove the cassette by holding the cassette handle.
3.5.5.2 Removing the right
cover
0007-7858
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-207
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-208
3.5.5.3 Removing the left cover 0007-7859
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-209
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-210
[1]
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
