Canon MF3110 - ImageCLASS Laser Multifunction - 3.6 FIXING SYSTEM

Chapter 3
3-61

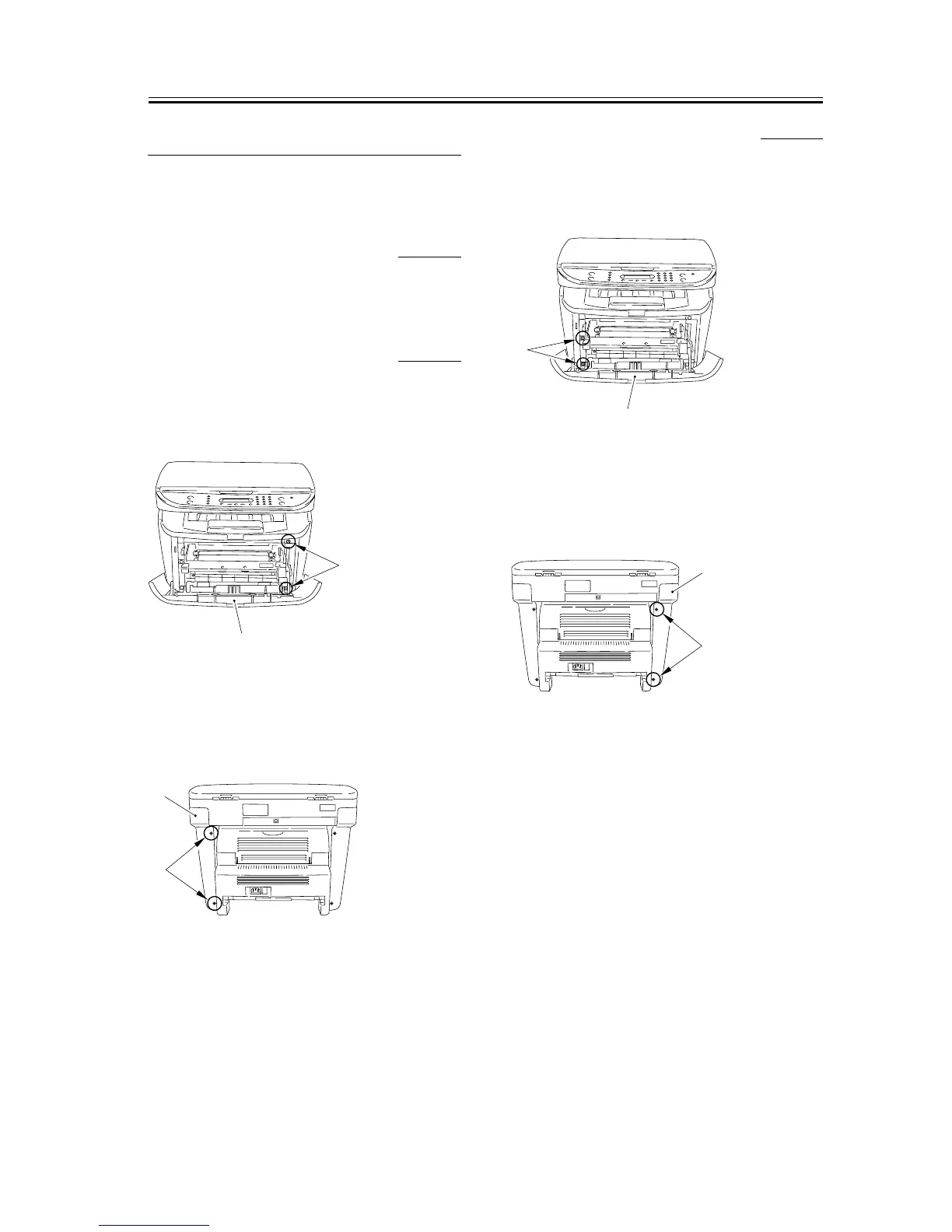

3.6 FIXING SYSTEM
3.6.1 Fixing Film Unit
3.6.1.1 Removing the Cassette 0002-7190
1) Remove the cassette by holding the cassette handle.
3.6.1.2 Removing the right
cover
0007-7729
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-243
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-244
3.6.1.3 Removing the left cover 0007-7730
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-245
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-246
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
