Canon MF3110 - ImageCLASS Laser Multifunction - Gear Unit; Removing the Cassette; Removing the Gear Unit; Removing the Right Cover

Chapter 3ޓ
3-60

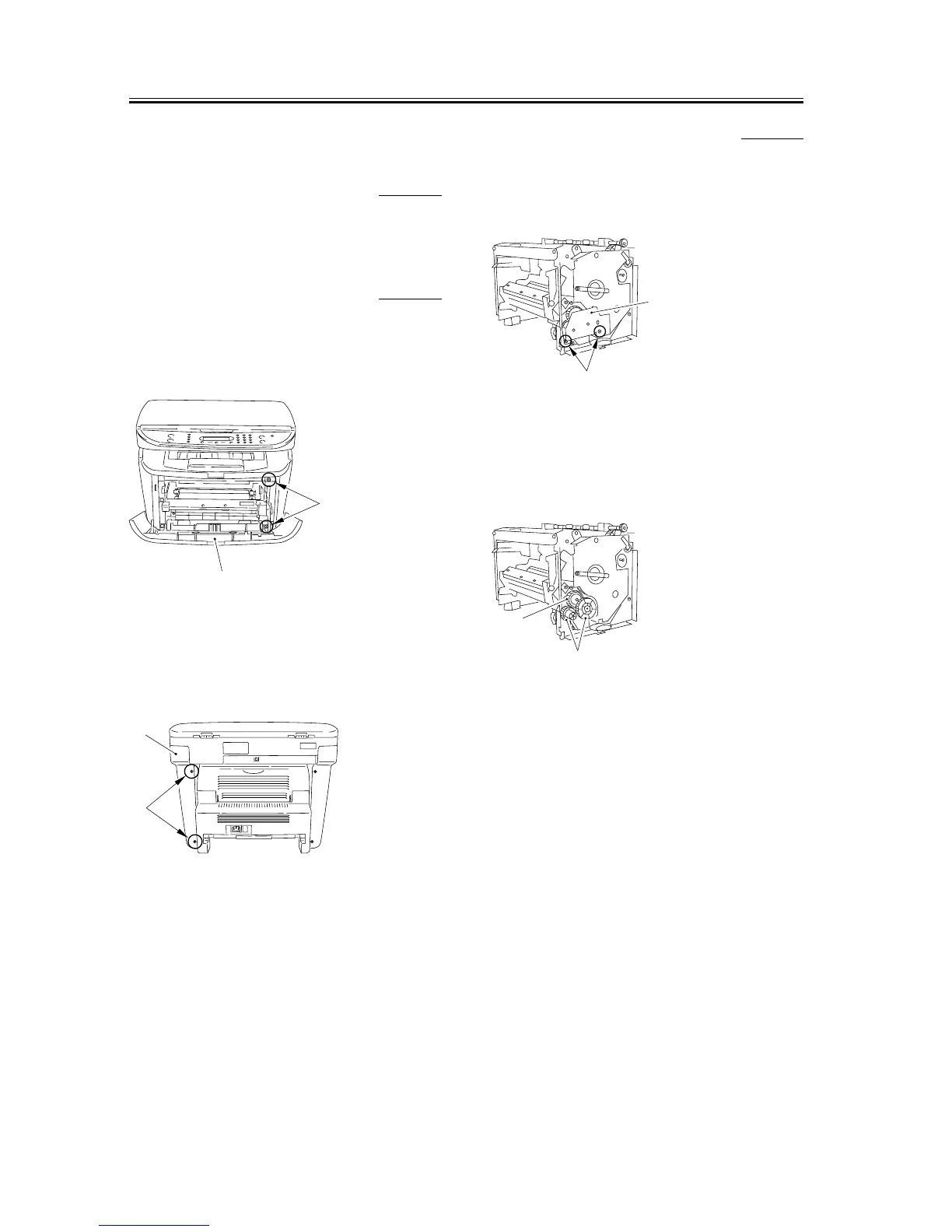

3.5.7 Gear Unit
3.5.7.1 Removing the Cassette 0002-7571
1) Remove the cassette by holding the cassette handle.
3.5.7.2 Removing the right
cover
0007-7775
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-239
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-240
3.5.7.3 Removing the Gear Unit 0007-7778
1) Remove the 2 screws [1], and detach the drive plate
(small) [2].
F-3-241
2) Remove the 2 gears [1].
3) While freeing the claw, detach the gear unit [2].
F-3-242
[1]
[2]
[1]
[2]
[2]
[1]
[2]
[1]
