Canon MF3110 - ImageCLASS Laser Multifunction - Removing the; Removing the Left Cover; Removing the Rear Cover

Chapter 3
3-43

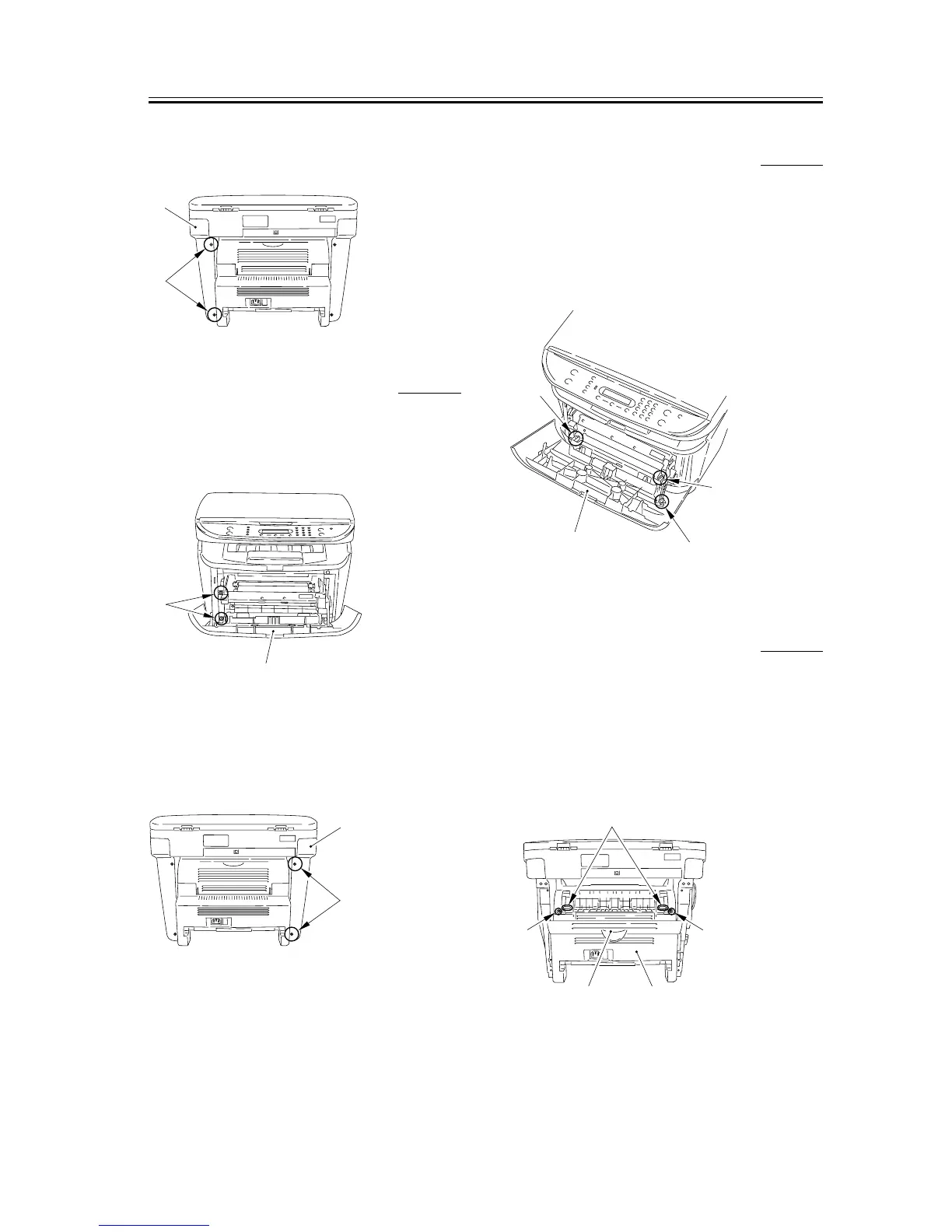

2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-167
3.5.2.3 Removing the left cover 0007-7824
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-168
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-169
3.5.2.4 Removing the front
cover
0007-7825
1) Open the front cover [1] and remove the arm claws
[2] to disengage the connection.
2) Remove the shafts on both sides [3] while warping
the shaft arms inside, and remove the front cover.
F-3-170
3.5.2.5 Removing the rear
cover
0007-7826
1) Opening the faceup cover [1], and then lower the
fixing pressure release levers [2] on both sides and
release the pressure.
2) Remove 2 screws [3].
3) Remove the rear cover [4] as you pull it toward you.
F-3-171
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[3]
[3]
[2]
[1] [4]
[3] [3]
[2]
