4.5.12 Pickup Idler Gear
0002-7944
Are of application: [1]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
Location of application:
 2 locations on pickup idler gear support shaft
 5 teeth or more (covering entire largediameter tooth surface of pickup idler gear)

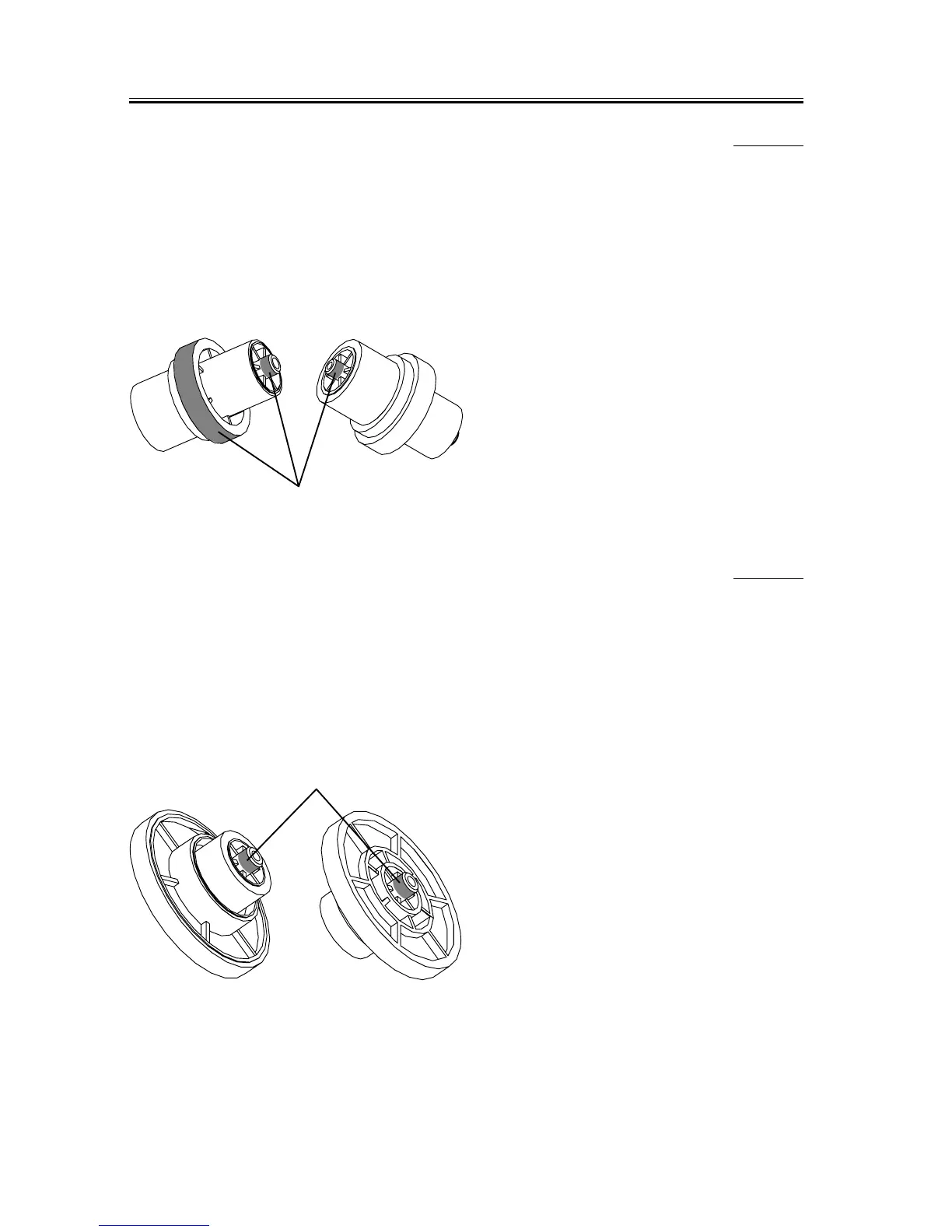

F-4-15
4.5.13 Feed Deceleration Gear
0002-7946
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
Location of application:
 2 locations on feed deceleration gear support shaft
 spread in axial direction
F-4-16
