4.5.8 Large Gear Deceleration Gear/Plate R
0002-7938
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 40 +/10 mg
Location of application:
 5 teeth or more (covering entire smalldia tooth area)
Are of application: [2]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
Location of application
 support shaft of plate R (sliding surface against large gear deceleration gear)
 spread in axial direction

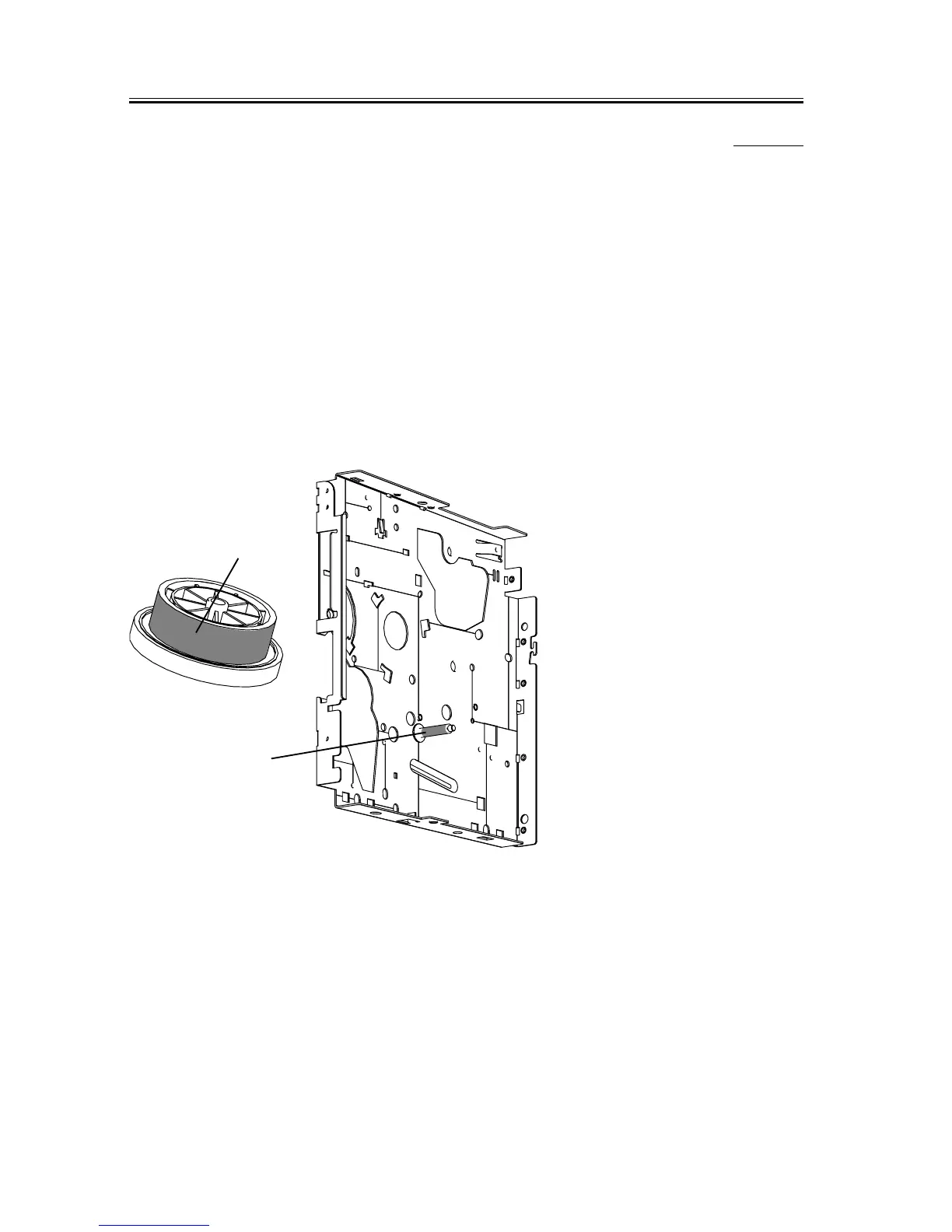

F-4-11
[1]
[2]
