Canon MF3110 - ImageCLASS Laser Multifunction - 5 Large Gear; 6 Feed Gear

Chapter 4ޓRunning H/F 5
4-10
4.5.5 Large Gear
0002-7933
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 20 +/10 mg
Location of application:
 rib against which gear is butted
 spread in circumferential direction over a length of 1/2 or more

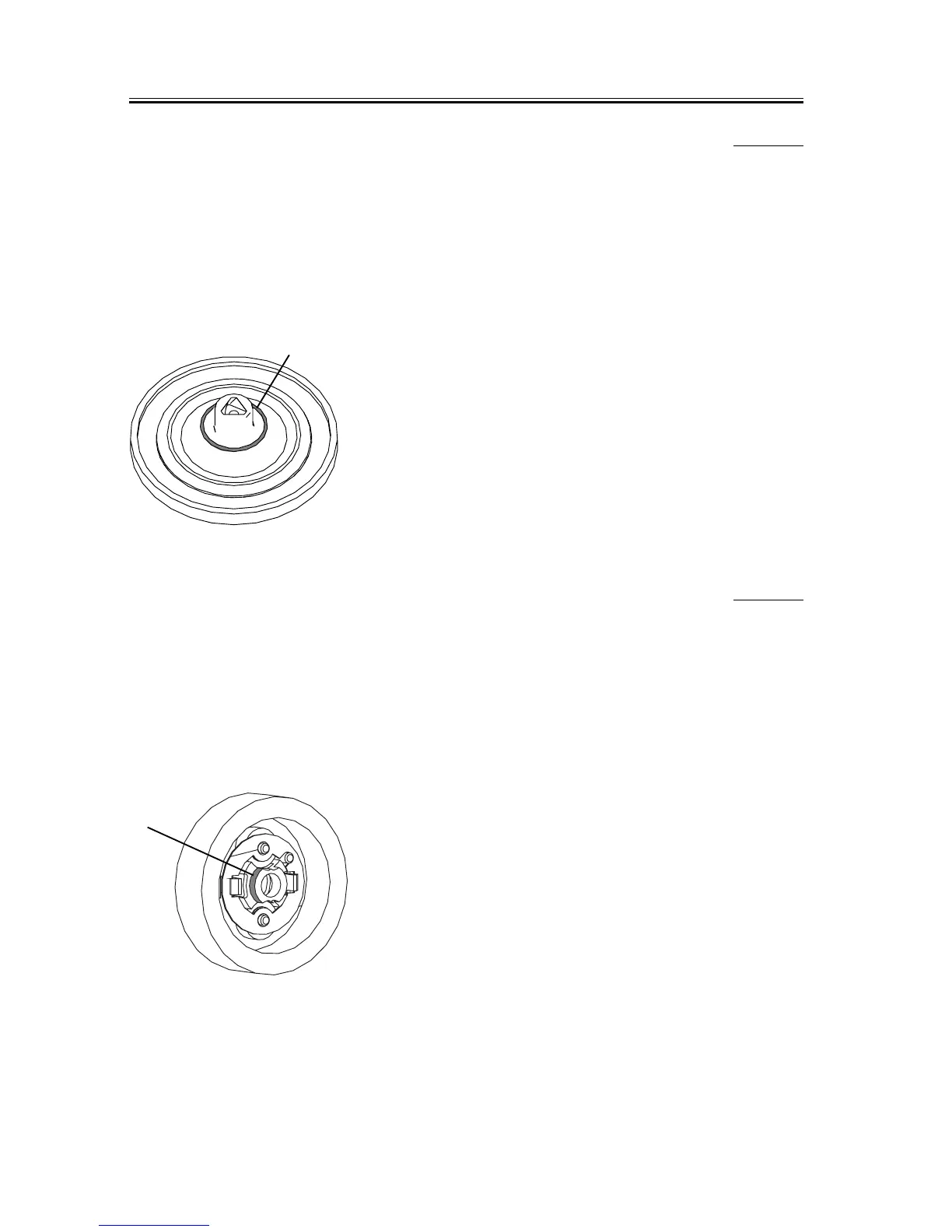

F-4-8
4.5.6 Feed Gear
0002-7935
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
Location of application:
 1 location on boss engaging with internal gear
 spread in axial direction
F-4-9
[1]
[1]
