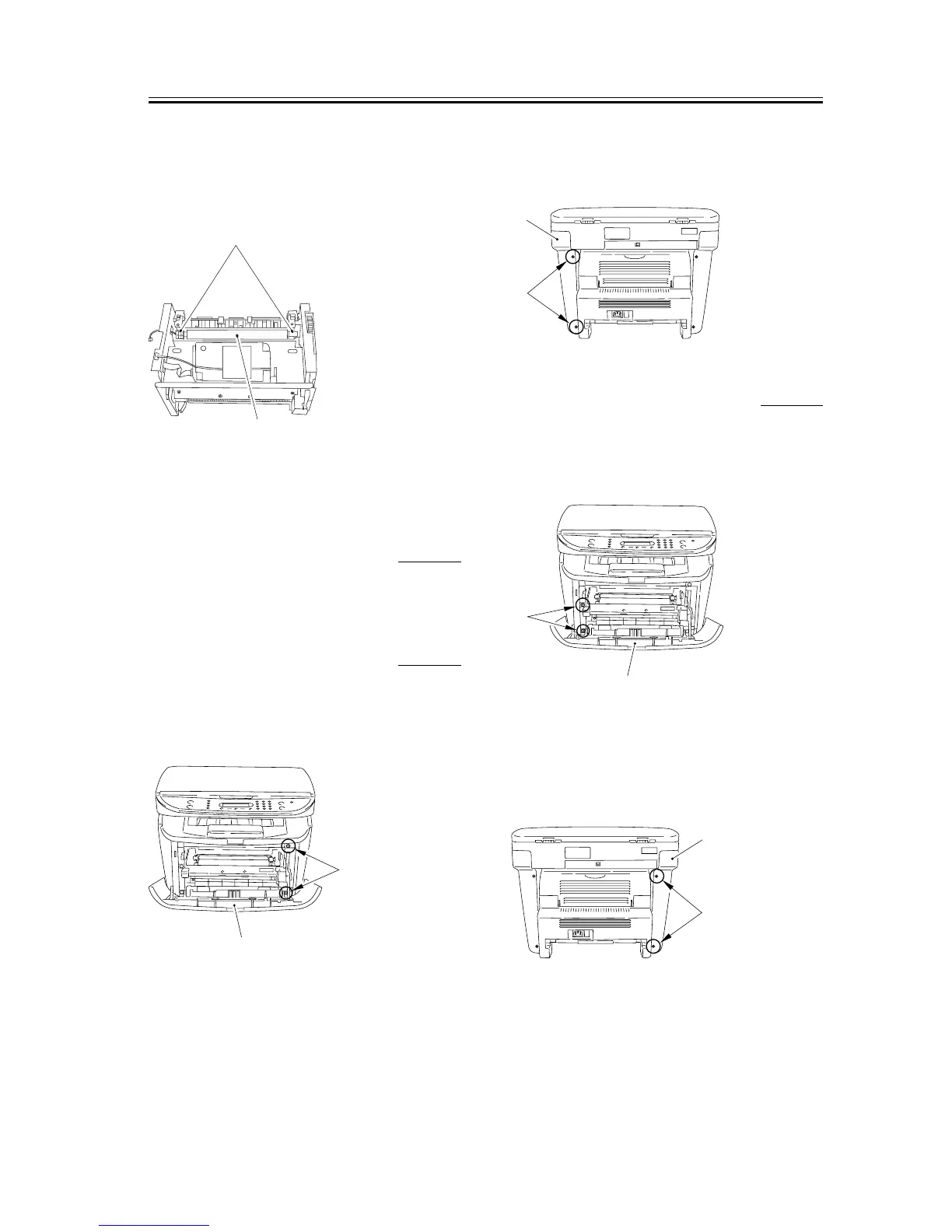

6) While holding the left and right frames [2] of the
Fixing film unit [1], lift it up at an angle and remove
it.
F-3-259
3.6.2 Fixing Pressure Roller
3.6.2.1 Removing the Cassette 0002-7191
1) Remove the cassette by holding the cassette handle.
3.6.2.2 Removing the right
cover
0007-7754
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-260
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-261
3.6.2.3 Removing the left cover 0007-7756
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-262
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-263
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
