Chapter 4
4-7
4.5 Lubrications
4.5.1 Areas Requiring Application of Grease
0007-9175
The machine has areas that require grease to permit smooth movement of parts or ensure good electrical conductivity.
If you have replaced a part in these areas or if you have removed the grease, be sure to apply grease.

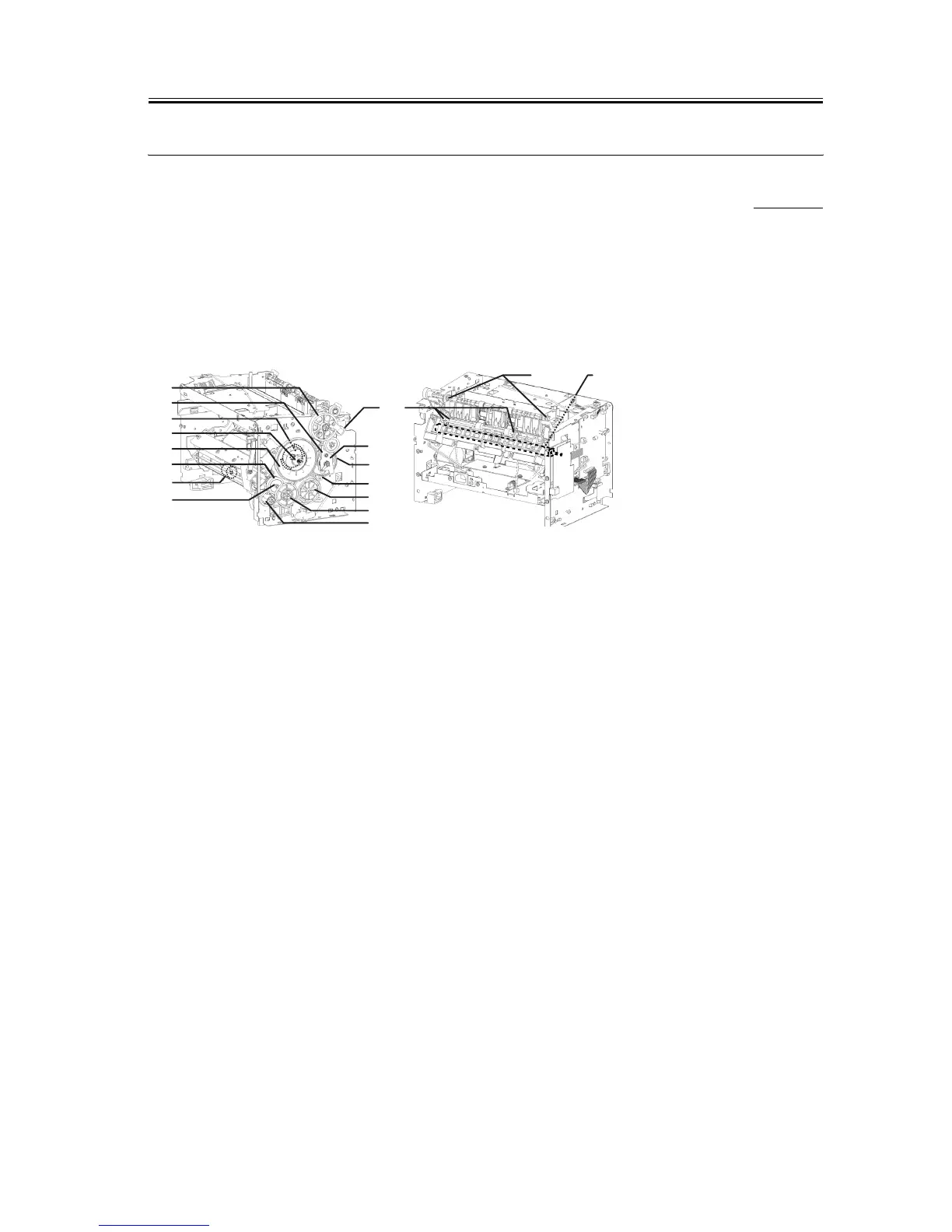

Printer unit
F-4-3
T-4-3
[1] Delivery idler gear [10] FU delivery roller
[2] Fixing drive transmission gear [11] Pickup idler gear
[3] Large gear bushing R [12] Feed deceleration gear
[4] Large gear [13] Fixing deceleration gear
[5] Feed gear [14] FD delivery gear
[6] Internal gear [15] Large gear bushing F
[7] Large gear deceleration gear/Plate R [16] Pressure roller
[8] Main motor [17] Cassette pickup roller
[9] Drive releasing arm
[9]
[11]
[10]
[7]
[8]
[12]
[13]
[1]
[5]
[6]
[17]
[4]
[3]
[2]
[15]
[14] [16]
