2.4 Pickup and Feed System
2.4.1 Overview/Configuration

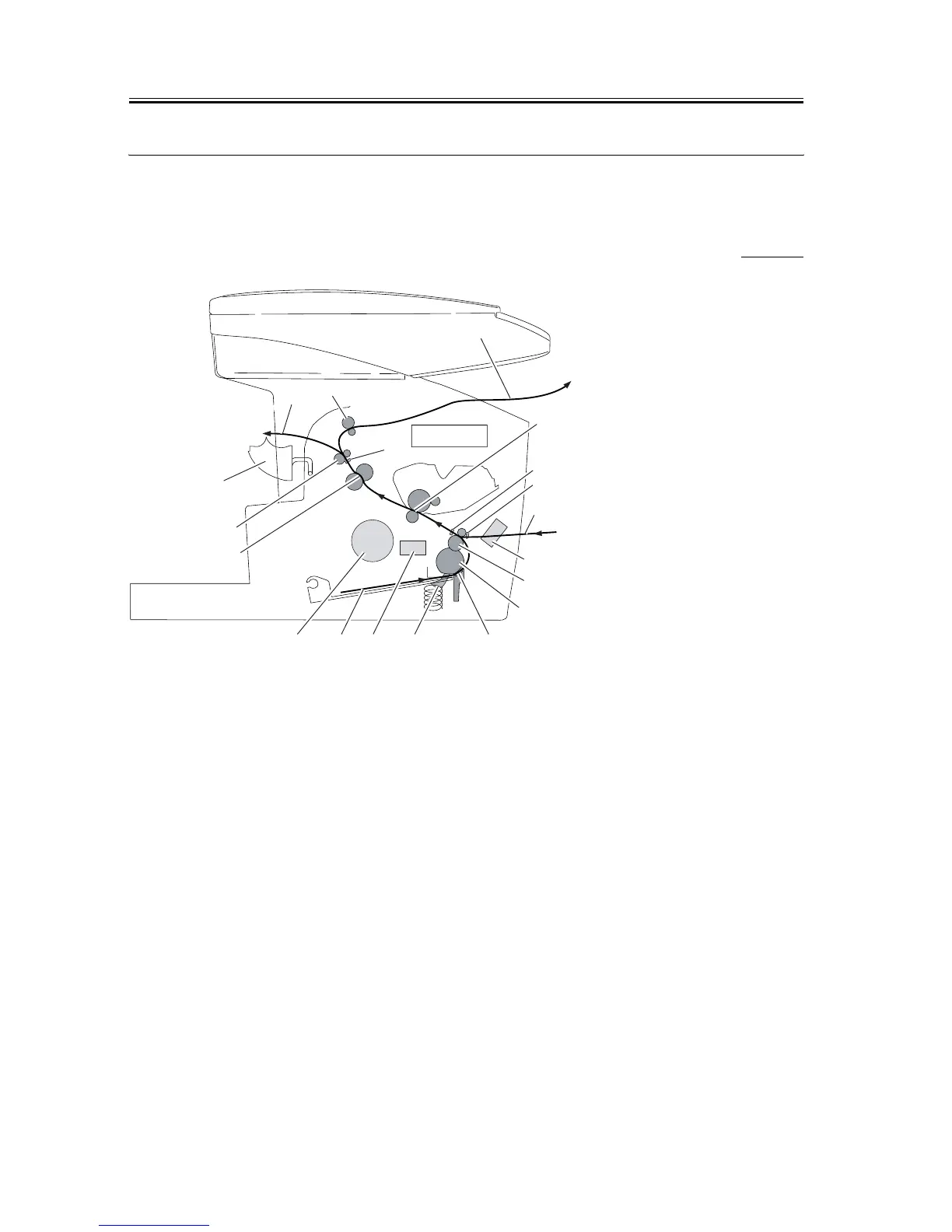

2.4.1.1 Overview 0007-9059
F-2-4
T-2-4
[1] Cassette feed [12] Facedown delivery
[2] Cassette pickup roller [13] Main motor
[3] Separation pad [14] Cassette pickup solenoid
[4] Manual feed [15] Manual feed pickup solenoid
[5] Feed roller [16] Cassette paper sensor
[6] Transfer assembly (photosensitive drum,
transfer charging roller)
[17] Manual feed paper sensor
[7] Fixing assembly (fixing film, fixing pressure
roller)
[18] Top sensor
[8] Delivery roller [19] Delivery sensor
[9] Faceup cover
[10] Faceup delivery
[11] Facedown delivery roller
[1][13] [14] [16]
[7]
[8]
[9]
[10]
[11]
[19]
[12]
[2]
[3]
[5]
[15]
[4]
[17]
[18]
[6]
