Chapter 3ޓ
3-56
3.5.6 Main Motor
3.5.6.1 Removing the Cassette 0002-7570
1) Remove the cassette by holding the cassette handle.
3.5.6.2 Removing the right
cover
0007-7780

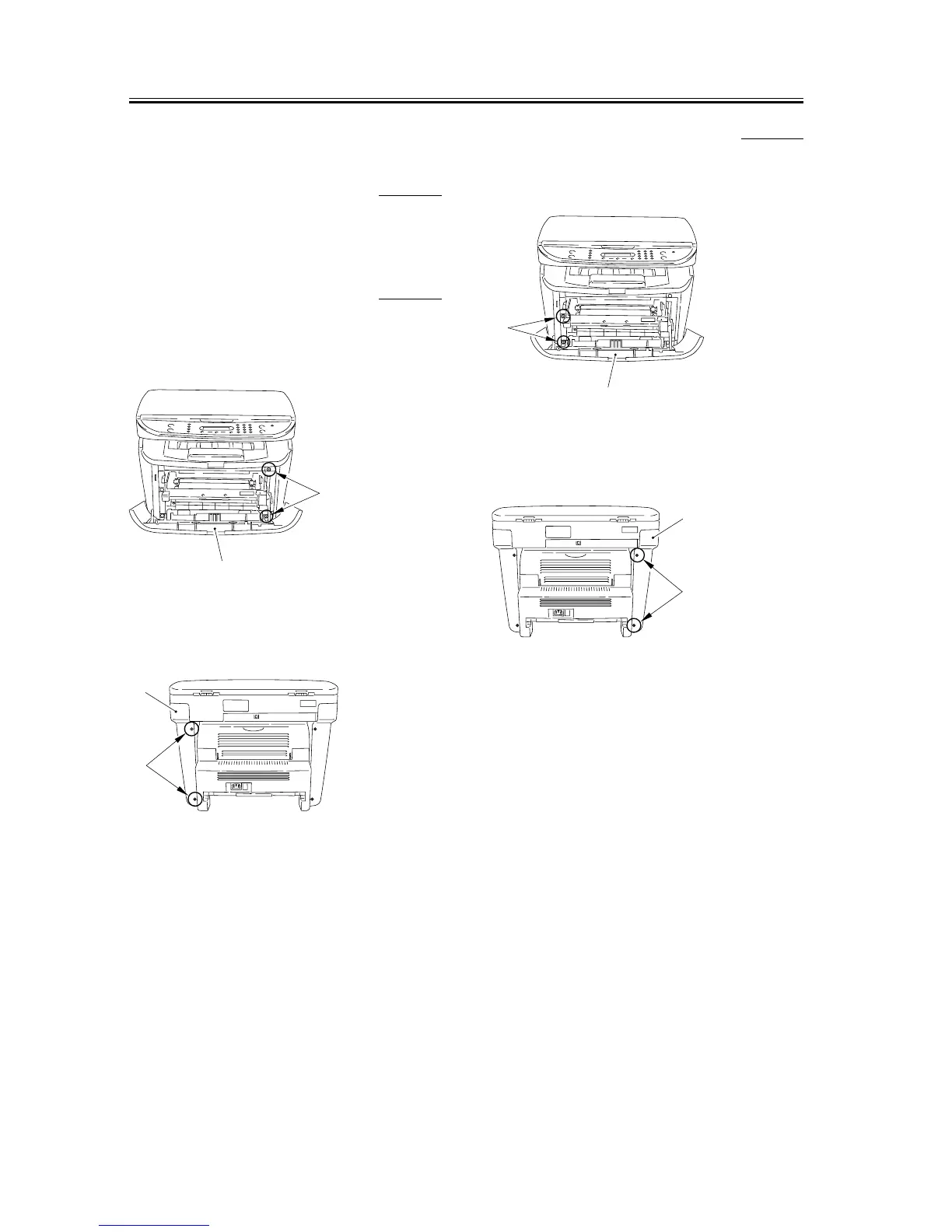

1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-223
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-224
3.5.6.3 Removing the left cover 0007-7781
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-225
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-226
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
