Chapter 3

3-37

3.4 IMAGE FORMATION

SYSTEM

3.4.1 Transfer Charging Roller

3.4.1.1 Removing the Transfer

Charging Roller

0007-7699

1) Open the front cover.

2) Hold the 2 claws [1] on the right side of the roller,

lifting them up.

3) Slide the transfer charging roller [2] by sliding it to

the right.

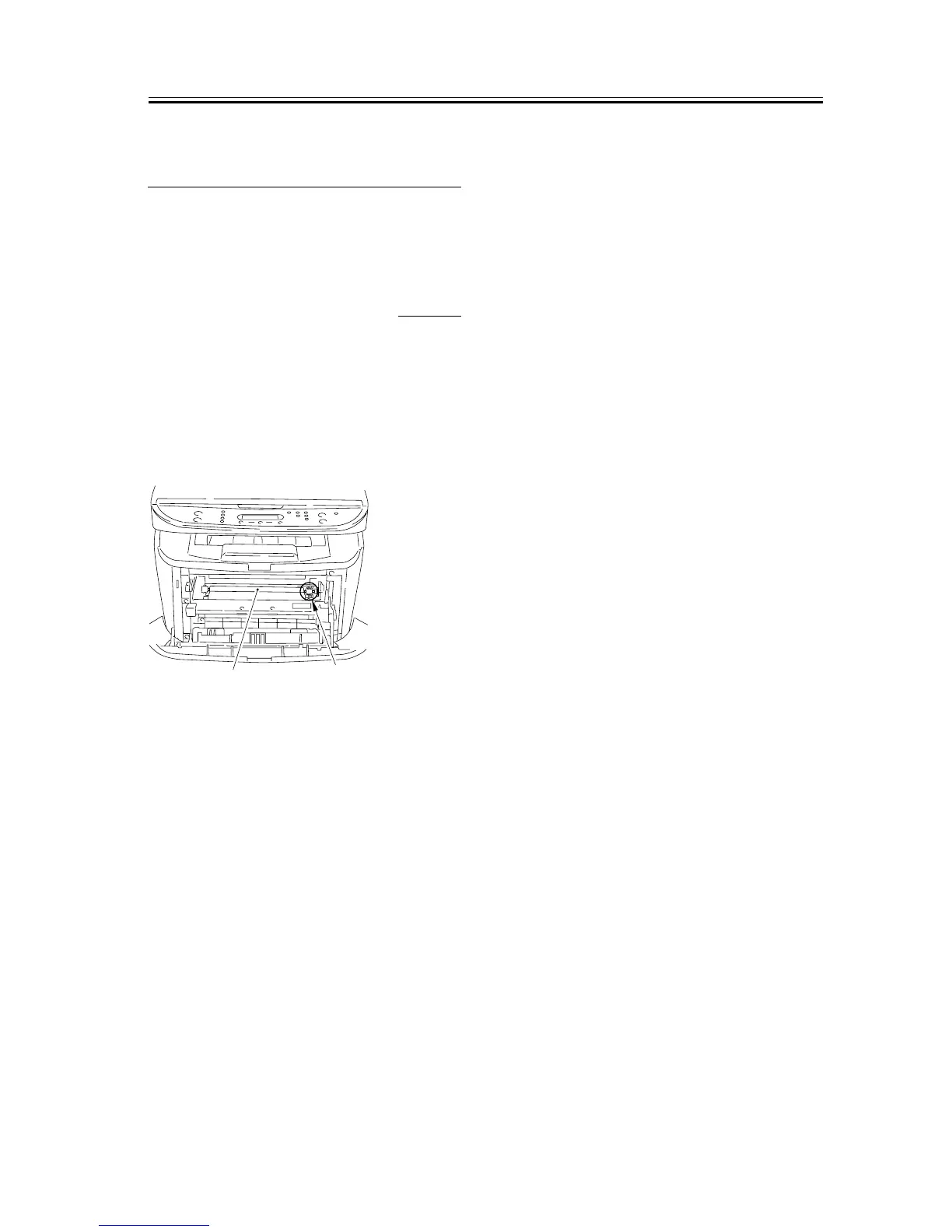

F-3-145

[2]

[1]
