Chapter 3ޓ
3-24

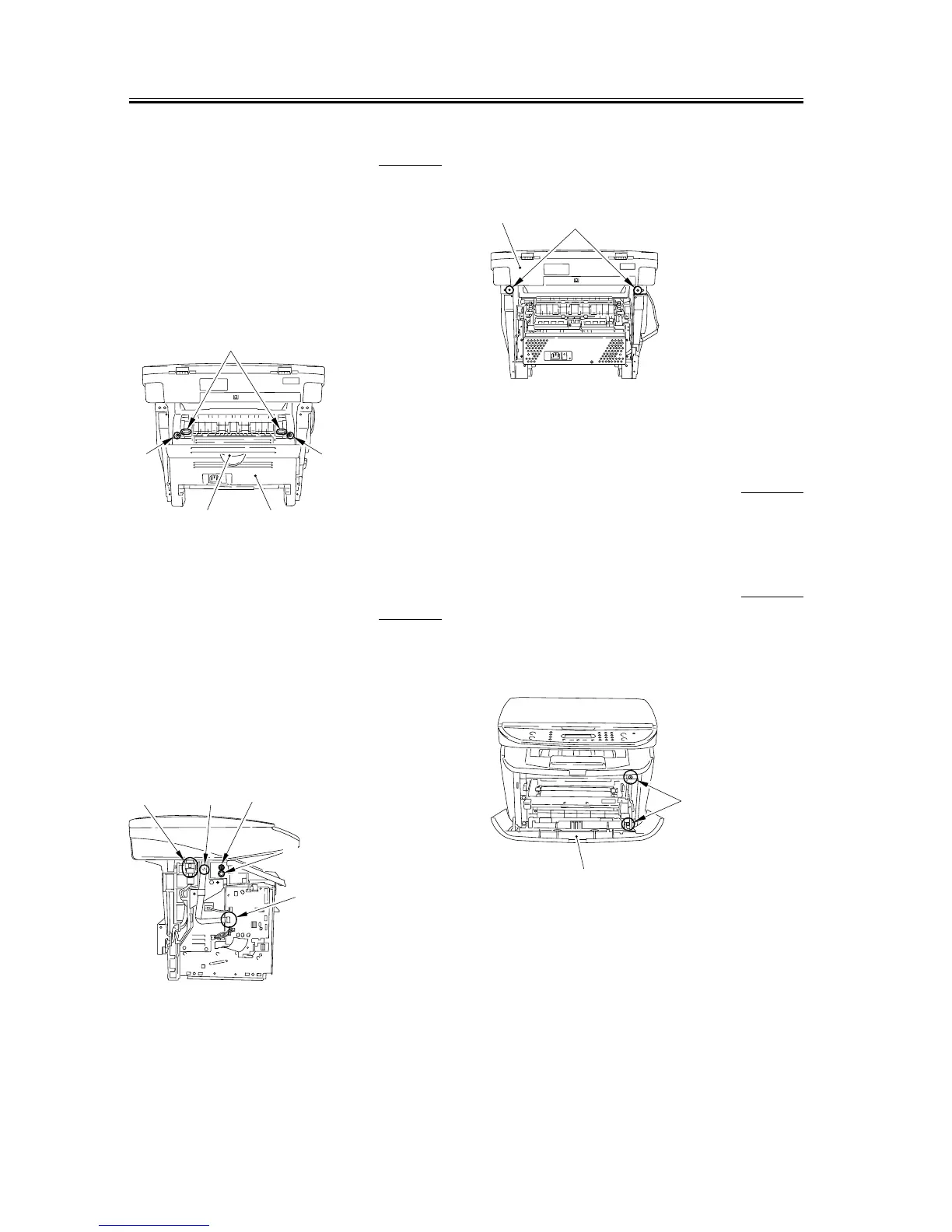

3.2.1.4 Removing the rear
cover
0007-7455
1) Opening the faceup cover [1], and then lower the
fixing pressure release levers [2] on both sides and
release the pressure.
2) Remove 2 screws [3].
3) Remove the rear cover [4] as you pull it toward you.
F-3-94
3.2.1.5 Removing the Scanner
Unit
0007-7457
1) Remove the connector [1] and the flat cable [2] on
the ECNT board, and remove the screw [3].
(Remove the flat cable from the core.)
2) Remove the 2 screws [4] and the 2 pins [5] on the
right and left sides.
F-3-95
3) Remove the 2 screws on the back [1]. Slide the
scanner unit [2] to the back; then, remove it by
lifting it.
F-3-96
3.2.2 Scanner Cover Unit
3.2.2.1 Removing the Cassette 0002-7746
1) Remove the cassette by holding the cassette handle.
3.2.2.2 Removing the right
cover
0007-7494
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-97
[1] [4]
[3] [3]
[2]
[2]
[4]
[3][1]
[5]
[1]
[2]
[1]
[2]
