Canon MF3110 - ImageCLASS Laser Multifunction - 3 Fixing Drive Transmission Gear; 4 Large Gear Bushing

Chapter 4
4-9

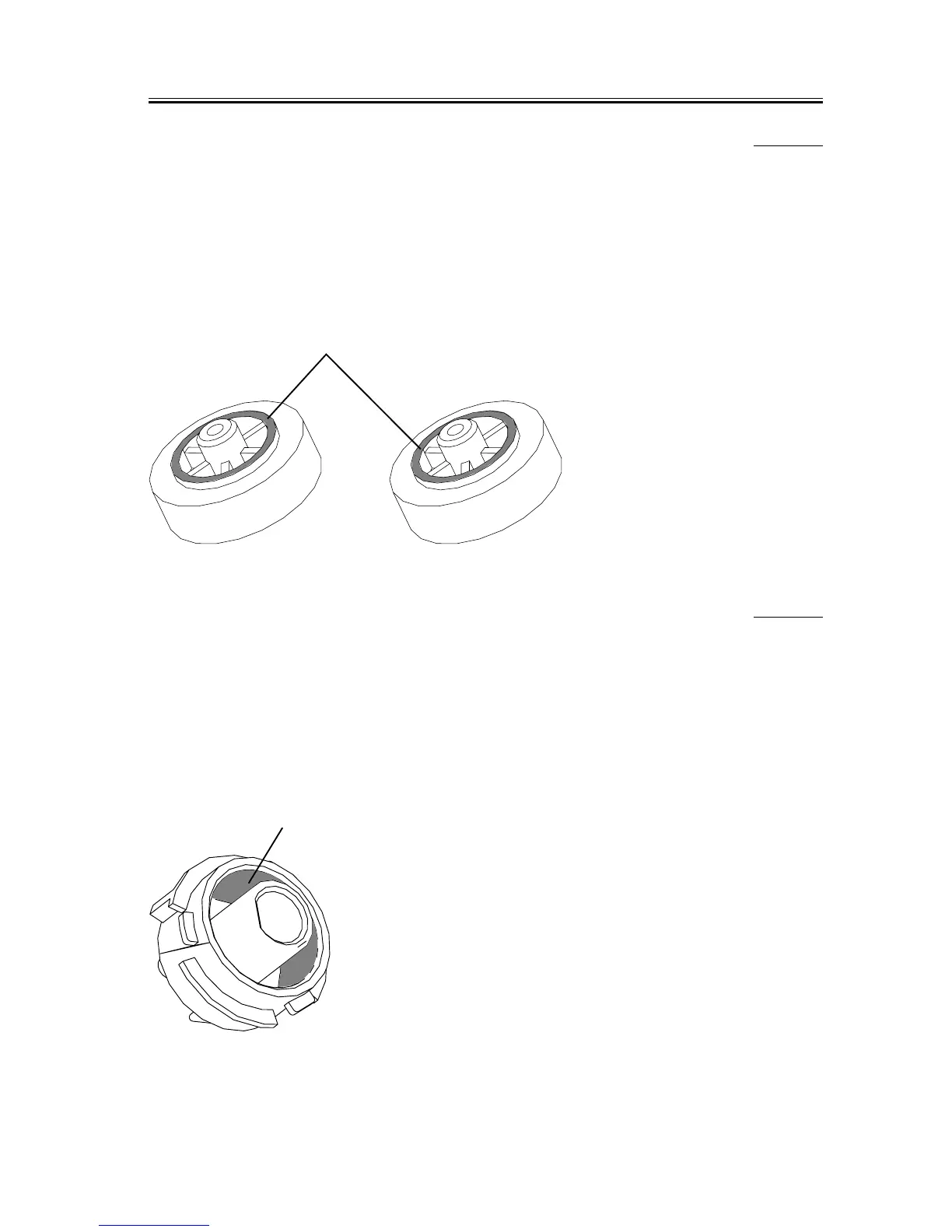

4.5.3 Fixing Drive Transmission Gear
0002-7929
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
Location of application:
 2 locations on gear butting ribs in opposition
 spread in circumferential direction over a length of 1/4 or more
F-4-6
4.5.4 Large Gear Bushing R
0002-7930
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
location of application:
 wall surface on inner circumferential side of bushing
 spread in circumferential direction over a length of 1/2 or more
F-4-7
[1]
[1]
