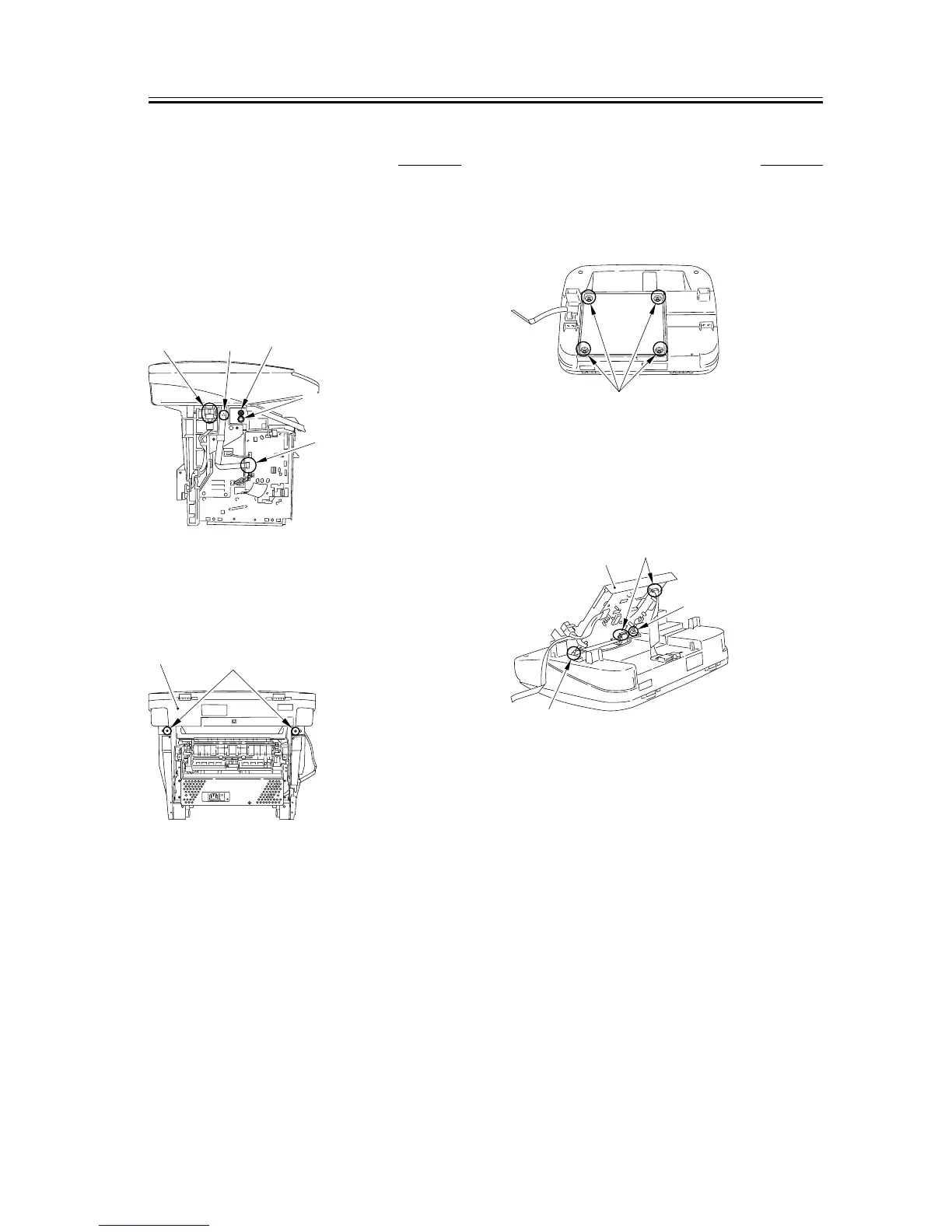

3.1.7.5 Removing the Scanner
Unit
0007-7479
1) Remove the connector [1] and the flat cable [2] on
the ECNT board, and remove the screw [3].
(Remove the flat cable from the core.)
2) Remove the 2 screws [4] and the 2 pins [5] on the
right and left sides.
F-3-35
3) Remove the 2 screws on the back [1]. Slide the
scanner unit [2] to the back; then, remove it by
lifting it.
F-3-36
3.1.7.6 Removing the Board
Unit
0007-7480
1) Remove the 4 screws [1] on the back side of the
scanner unit.
F-3-37
2) Open the board unit [1], and remove the connector
[2], the grounding cable [3] and the 3 flat cables [4].
F-3-38
