Chapter 3ޓ
3-34
3.3 LASER EXPOSURE
SYSTEM
3.3.1 Laser/Scanner Unit
3.3.1.1 Removing the Cassette 0002-7542
1) Remove the cassette by holding the cassette handle.
3.3.1.2 Removing the right
cover
0007-7768

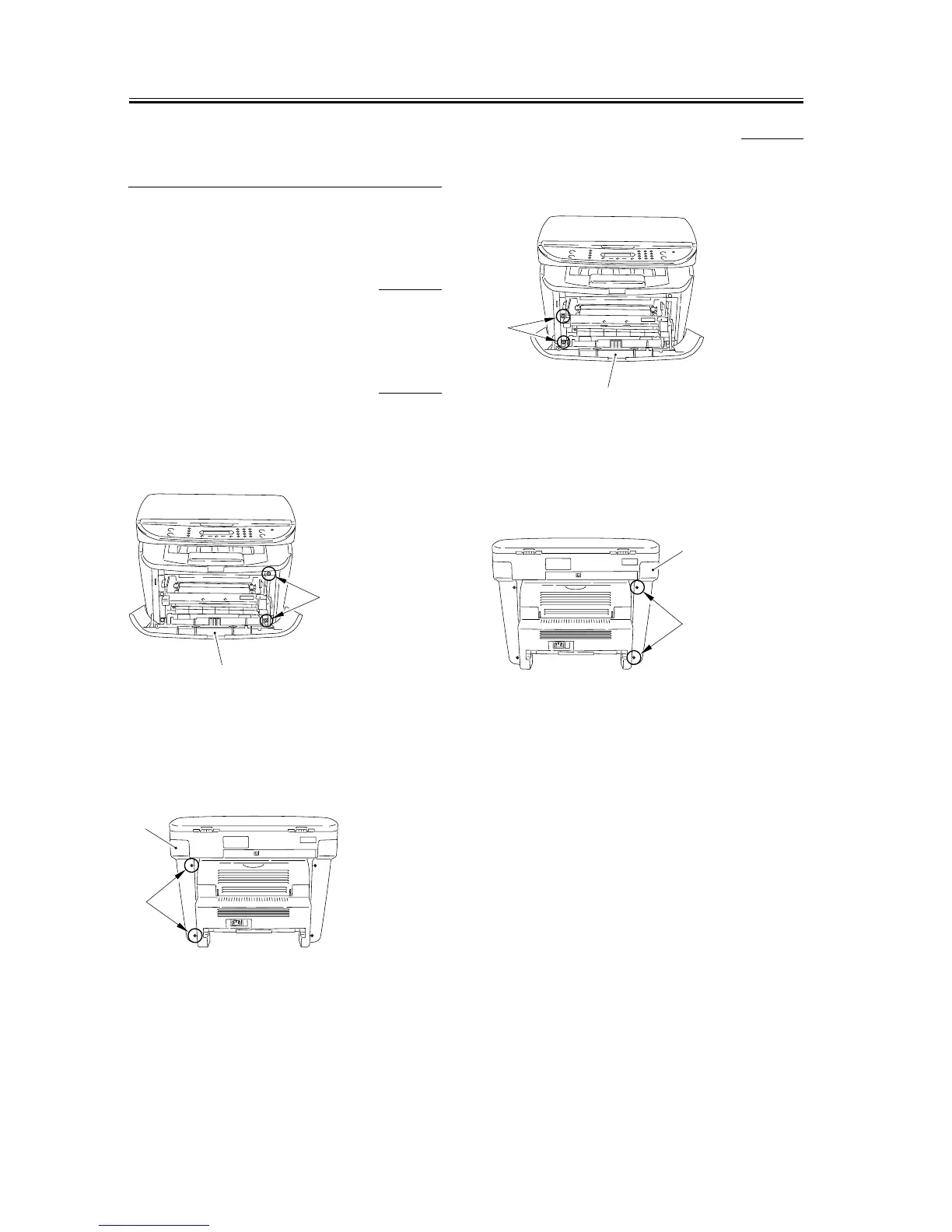

1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-136
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-137
3.3.1.3 Removing the left cover 0007-7769
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-138
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-139
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
