Chapter 3
3-23
3.2 Document Feed/
Exposure System
3.2.1 Scanner Unit
3.2.1.1 Removing the Cassette 0002-7555
1) Remove the cassette by holding the cassette handle.
3.2.1.2 Removing the right
cover
0007-7453

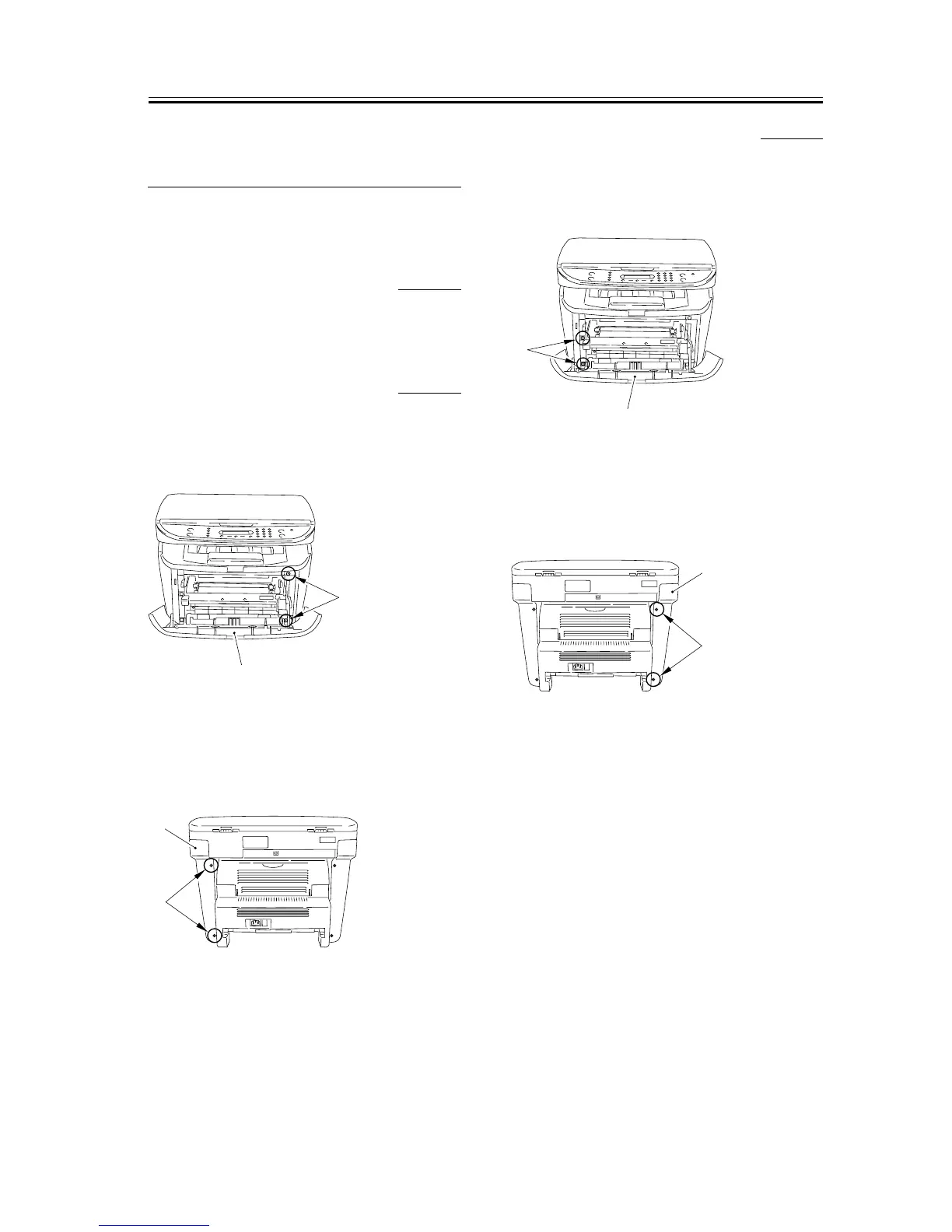

1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-90
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-91
3.2.1.3 Removing the left cover 0007-7454
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-92
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-93
[1]
[2]
[1]
[2]
[1]
[2]
[1]
[2]
