Canon MF3110 - ImageCLASS Laser Multifunction - Canon MF3110 Service Manual: Chapter 3 Disassembly and Assembly; 3.1 EXTERNAL AND CONTROLS SYSTEM

Chapter 3
3-1
3.1 EXTERNAL AND
CONTROLS SYSTEM
3.1.1 Front Cover
3.1.1.1 Removing the Cassette 0002-6889
1) Remove the cassette by holding the cassette handle.
3.1.1.2 Removing the front
cover
0007-7439

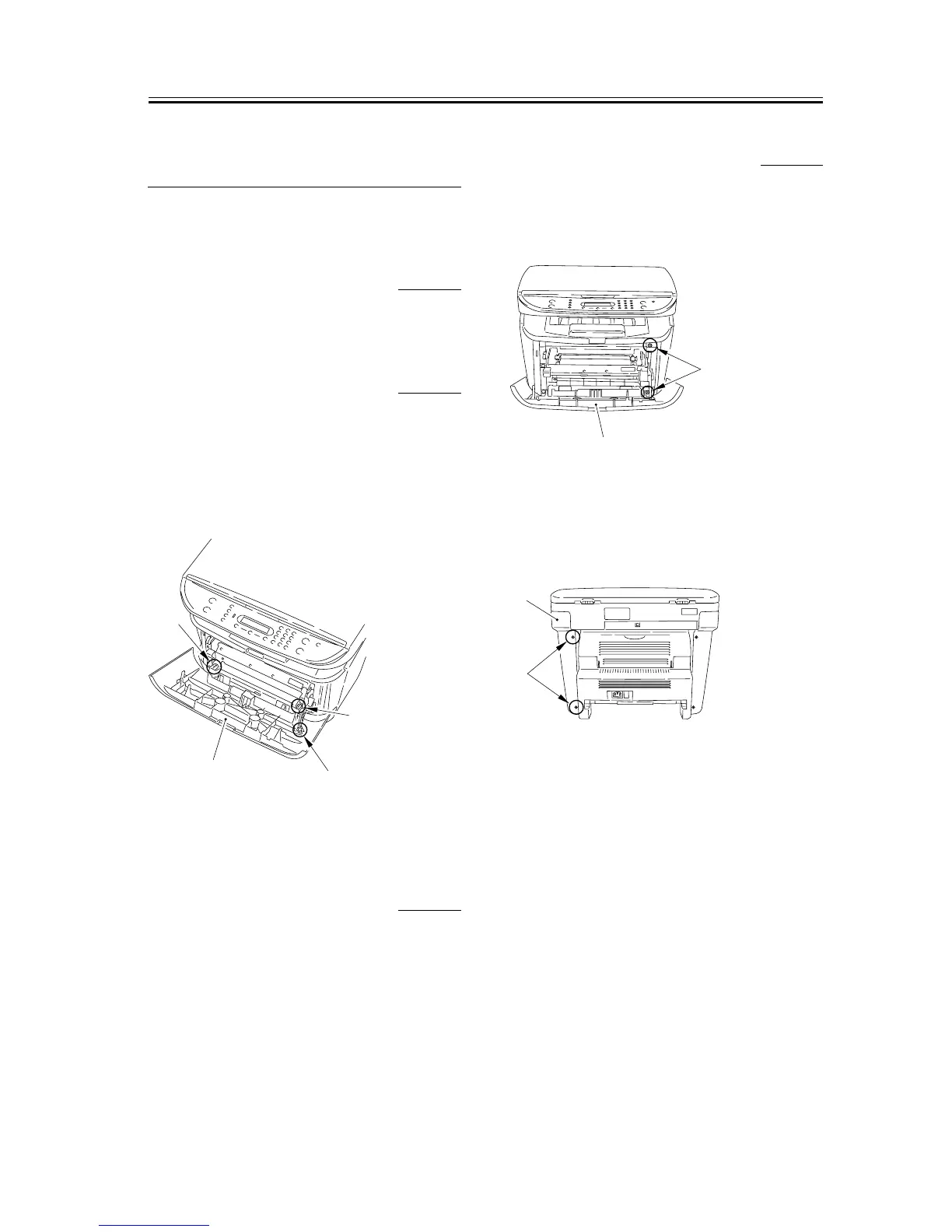

1) Open the front cover [1] and remove the arm claws
[2] to disengage the connection.
2) Remove the shafts on both sides [3] while warping
the shaft arms inside, and remove the front cover.
F-3-1
3.1.2 Rear Cover
3.1.2.1 Removing the Cassette 0002-6890
1) Remove the cassette by holding the cassette handle.
3.1.2.2 Removing the right
cover
0007-7442
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-2
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-3
[1]
[3]
[3]
[2]
[1]
[2]
[1]
[2]
