Canon MF3110 - ImageCLASS Laser Multifunction - Removing the Main Motor; Removing the Power Supply Assembly; Removing the Power Supply Shield Plate

Chapter 3
3-59

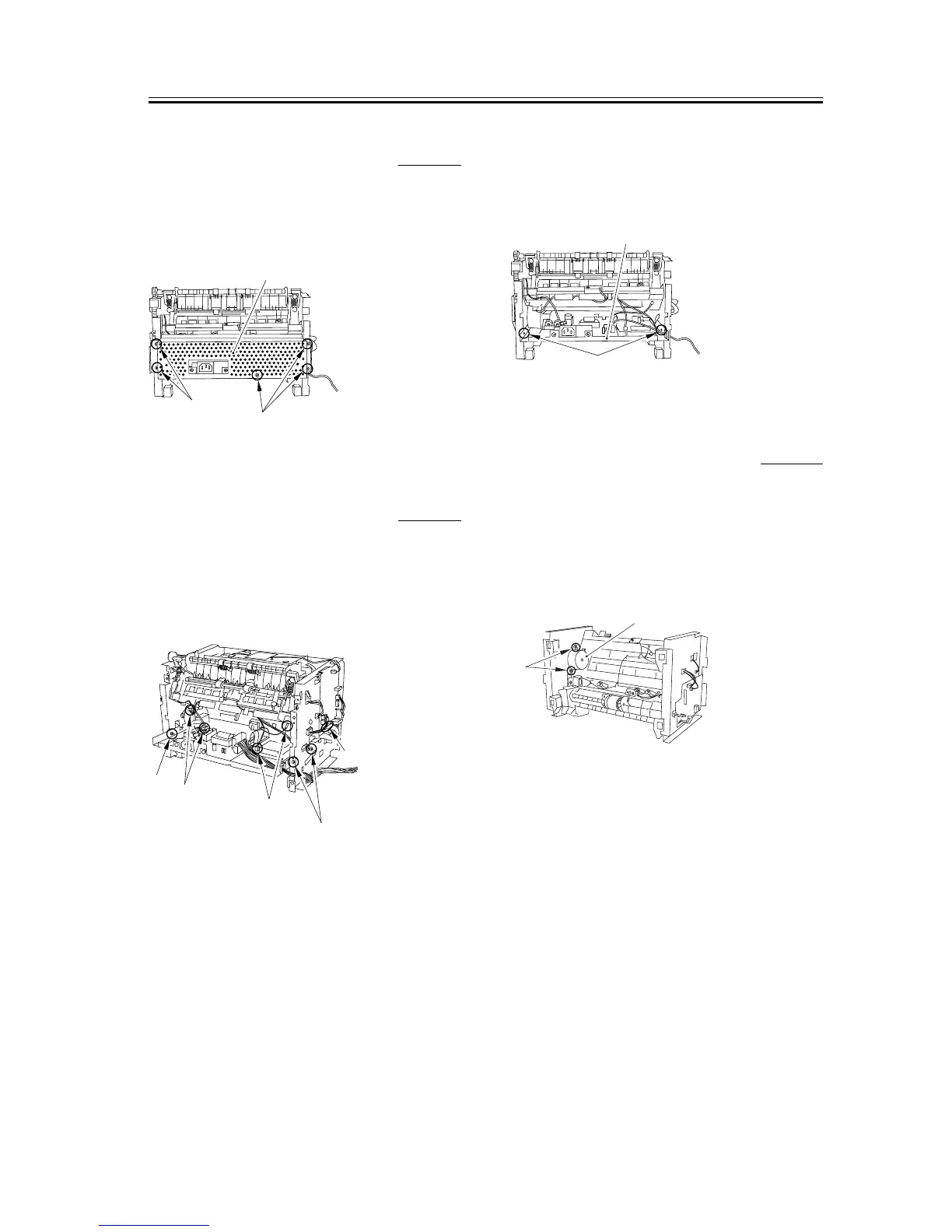

3.5.6.11 Removing the Power
Supply Shield Plate
0007-7792
1) Remove the 5 screws [1] to remove the power
supply shield plate [2].
F-3-235
3.5.6.12 Removing the Power
Supply Assembly
0007-7793
1) Remove the 3 screws [1].
2) Remove the 4 connectors [2] as well as the flat
cable [3] on the ECNT board.
F-3-236
3) As you remove the bosses on both sides [1], lower
the front part of the power supply assembly [2].
Then pull it to remove the power supply assembly.
F-3-237
3.5.6.13 Removing the Main
Motor
0007-7794
1) Place the main unit down on its front face (so that
the interior of the main unit is easily visible).
2) Remove the 2 screws [1] to remove the main motor
[2].
F-3-238
[1]
[1]
[2]
[1]
[2]
[2]
[1]
[3]
[1]
[2]
[1]
[2]
