Canon MF3110 - ImageCLASS Laser Multifunction - 2 Delivery Idler Gear

Chapter 4ޓRunning H/F 5
4-8
Scanner unit
F-4-4
T-4-4

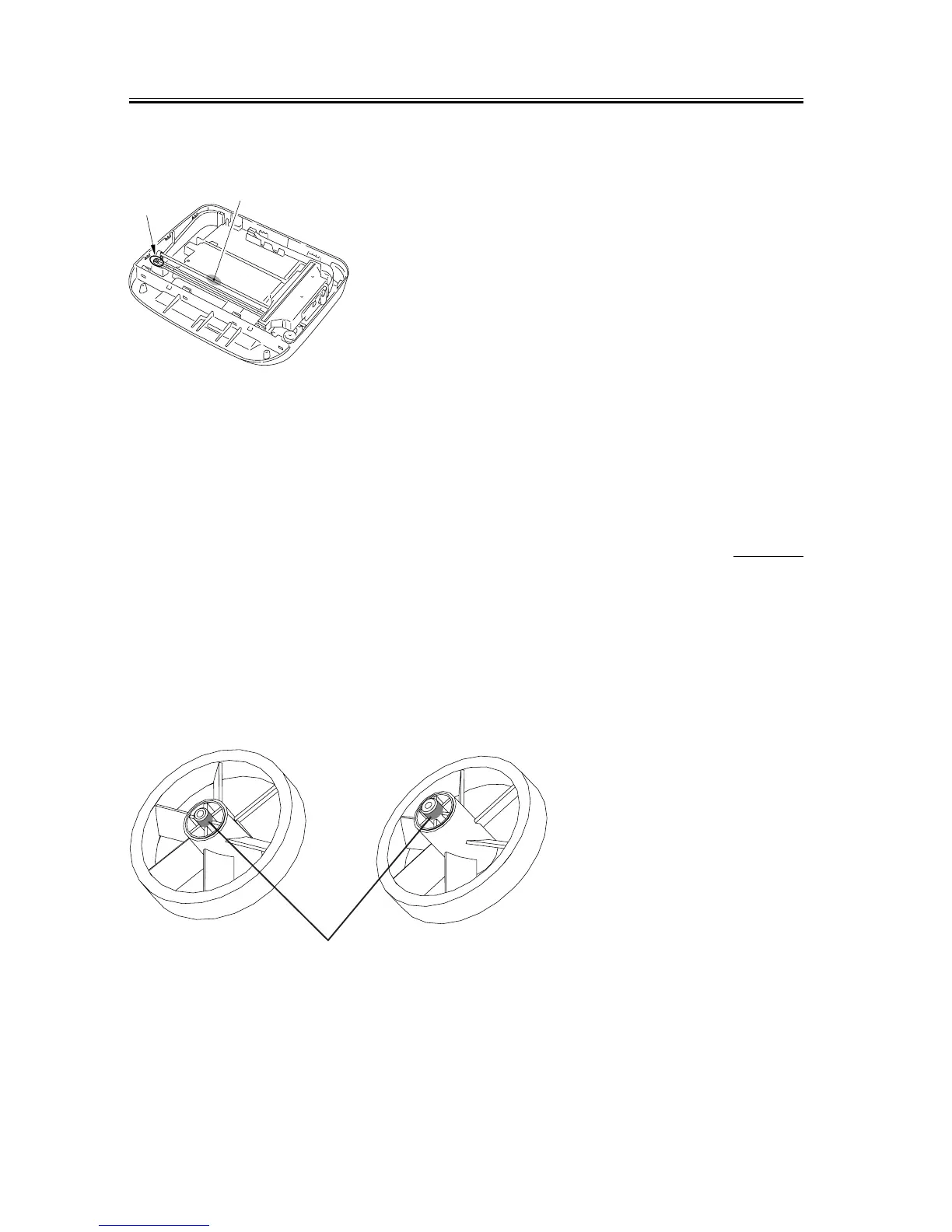

4.5.2 Delivery Idler Gear
0002-7926
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 40 +/10 mg
Location of application:
 2 locations on gear support shaft in opposition
 spread in axial direction
F-4-5
[1] CCD shaft [2] Wheel shaft
[2]
[1]
[1]
