Chapter 3ޓ
3-4

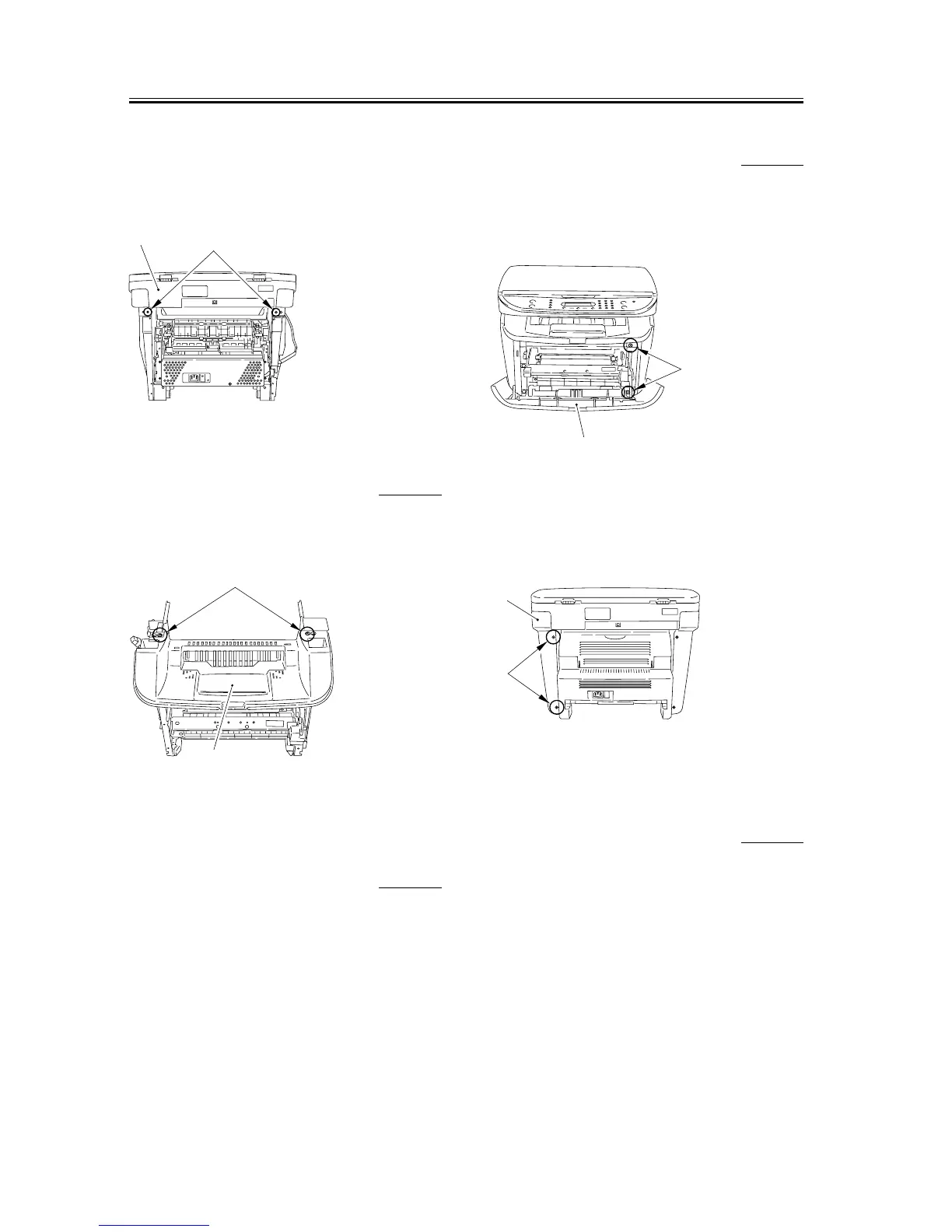

3) Remove the 2 screws on the back [1]. Slide the
scanner unit [2] to the back; then, remove it by
lifting it.
F-3-13
3.1.3.6 Removing the Top
Cover
0007-7461
1) Remove the 2 screws [1], and remove the Top cover
[2].
F-3-14
3.1.4 Right Cover
3.1.4.1 Removing the Cassette 0002-6871
1) Remove the cassette by holding the cassette handle.
3.1.4.2 Removing the right
cover
0007-7418
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-15
2) Remove the 2 screws [1] on the back side, and
remove the right cover [2].
F-3-16
3.1.5 Left Cover
3.1.5.1 Removing the Cassette 0002-6874
1) Remove the cassette by holding the cassette handle.
[1]
[2]
[2]
[1]
[1]
[2]
[1]
[2]
