Canon MF3110 - ImageCLASS Laser Multifunction - 2.2 Laser Exposure

Chapter 2ޓRunning H/F 5
2-2
2.2 Laser Exposure
2.2.1 Overview/Configuration
2.2.1.1 Overview 0002-8624

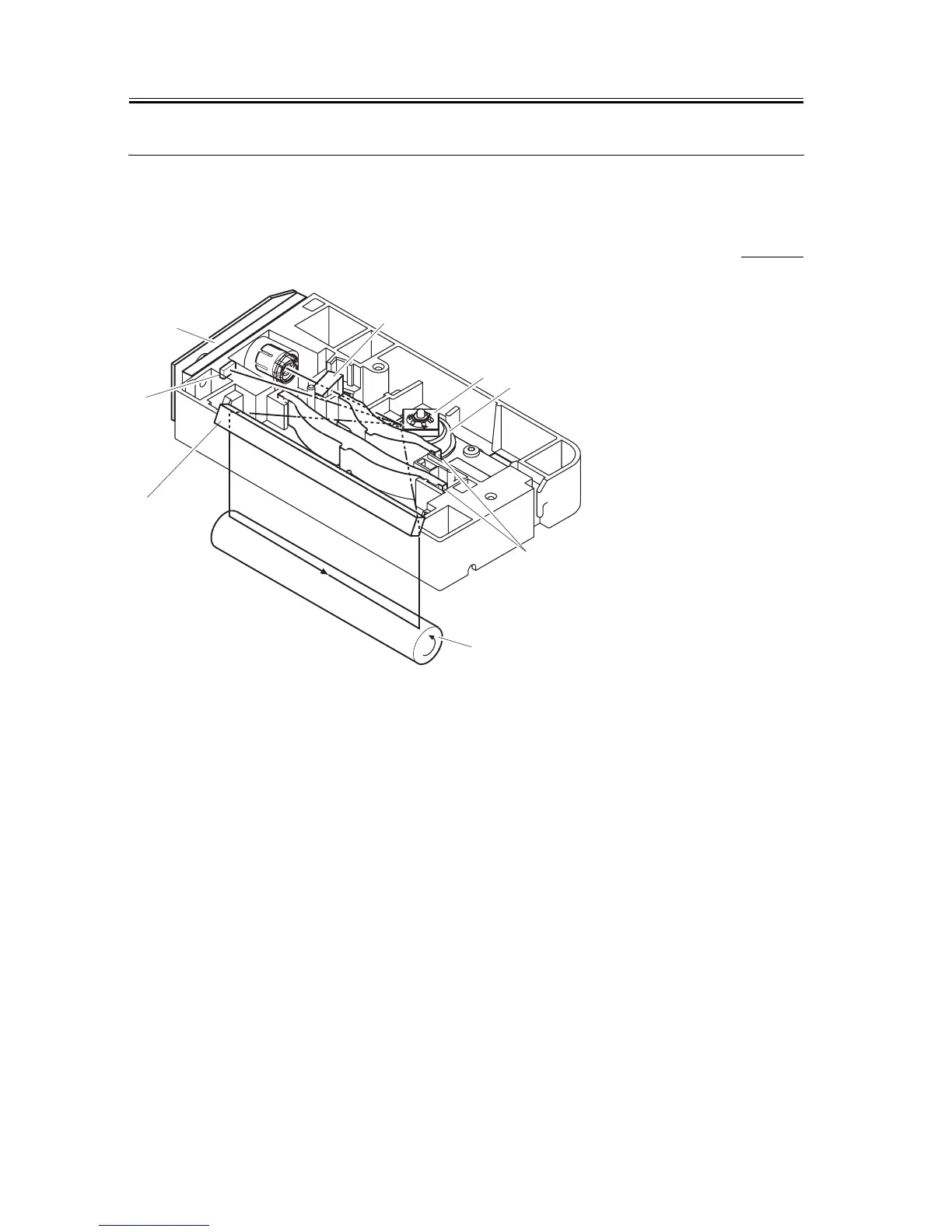

F-2-2
T-2-2
The machine's laser scanner assembly consists of the laser driver and the scanner motor, which are driven by signals
coming from the engine controller.
The laser driver serves to turn on the laser diode according to the laser control signal and video signals from the
engine controller.
The laser beam moves thorough the collimator less and the cylindrical lens to reach the 4facet mirror rotating at a
specific speed.
[1] Laser driver PCB [5] Imaging lends
[2] BD sensor [6] Scanner motor
[3] Reflecting mirror [7] 4facet mirror
[4] Photosensitive drum [8] Cylindrical lens
[2]
[1]
[3]
[4]
[5]
[7]
[6]
[8]
