Canon MF3110 - ImageCLASS Laser Multifunction - Fixing Deceleration Gear

Chapter 4
4-17
4.5.14 Fixing Deceleration Gear
0002-7954
Area of application: [1]
Grease: MOLYKOTE EM50L
Amount: 40 +/10 mg
Location of application
 5 teeth or more (covering entire surface of fixing deceleration gear; smalldiameter teeth)
Area of application: [2]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
Location application:
 tip of feed deceleration gear butting rib in circumferential direction over a length of 1/2 or more
Area of location: [3]
Grease: MOLYKOTE EM50L
Amount: 10 +/5 mg
Location of application:
 sliding surface against plate R of fixing deceleration gear in circumstantial direction over a length of 1/2 or more

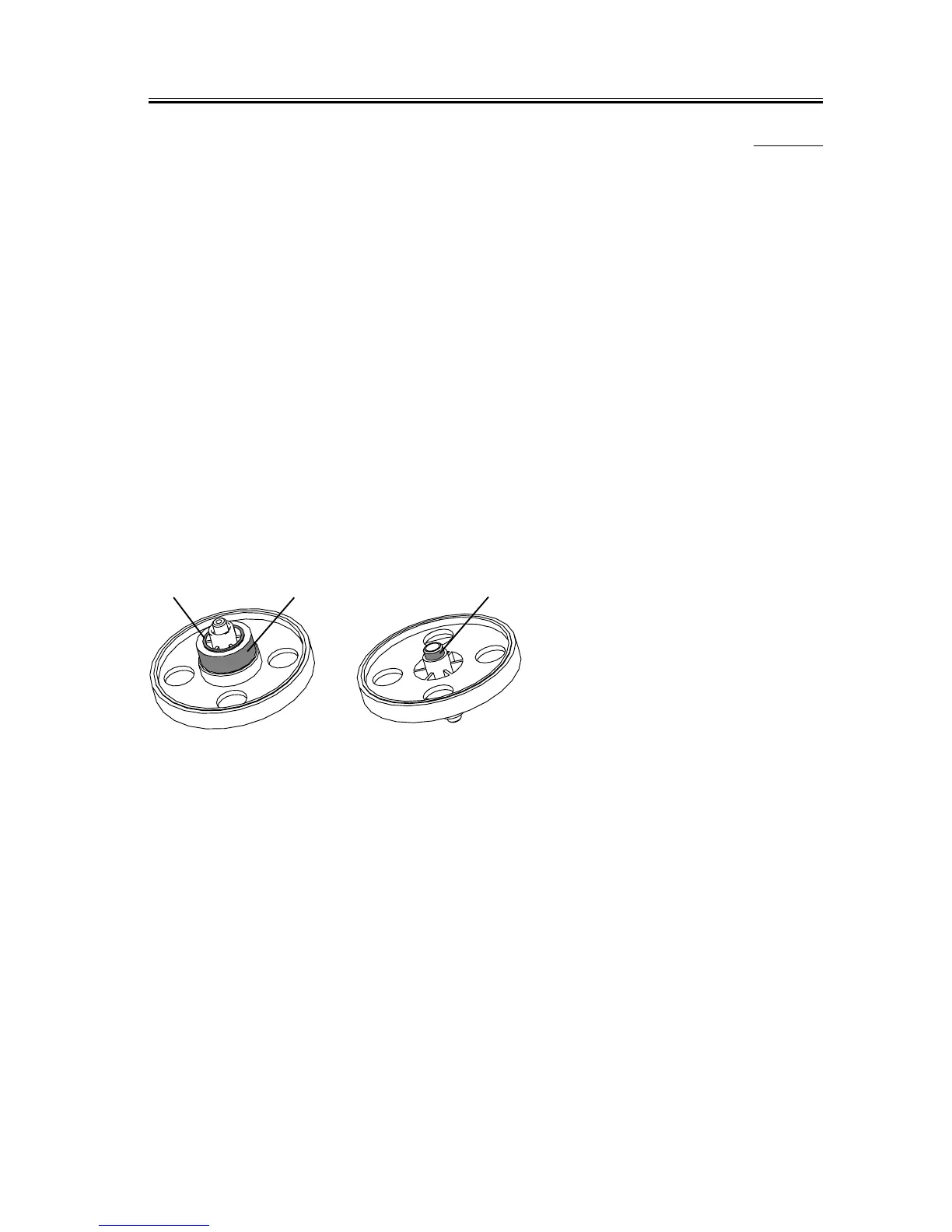

F-4-17
[1] [3][2]
