3.1.2.3 Removing the left cover 0007-7446

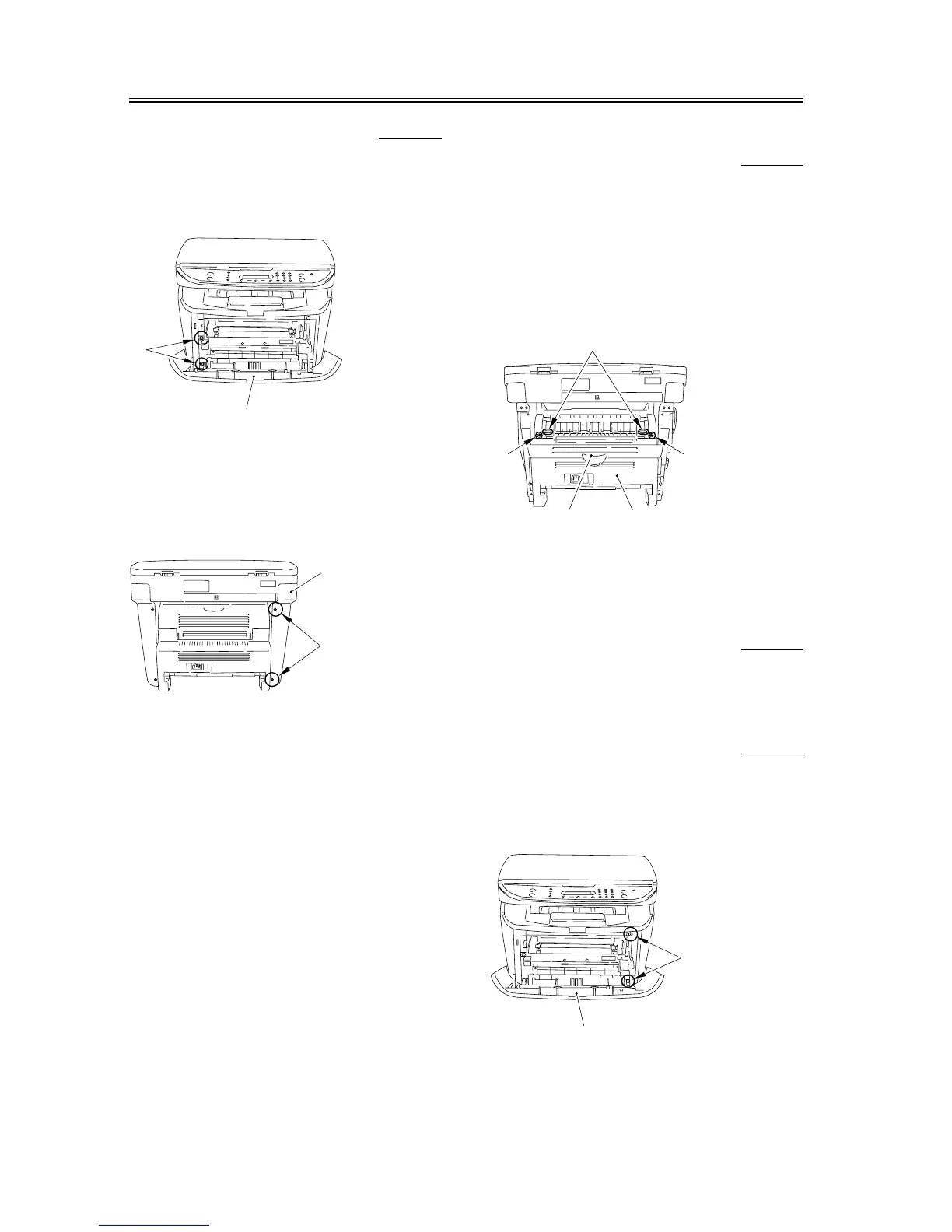

1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-4
2) Remove the 2 screws [1] on the back side, and
remove the left cover [2].
F-3-5
3.1.2.4 Removing the rear
cover
0007-7449
1) Opening the faceup cover [1], and then lower the
fixing pressure release levers [2] on both sides and
release the pressure.
2) Remove 2 screws [3].
3) Remove the rear cover [4] as you pull it toward you.
F-3-6
3.1.3 Top Cover
3.1.3.1 Removing the Cassette 0002-6891
1) Remove the cassette by holding the cassette handle.
3.1.3.2 Removing the right
cover
0007-7443
1) Open the front cover [1], and remove the 2 screws
[2] on the front side.
F-3-7
