Chapter 3ޓ
3-12

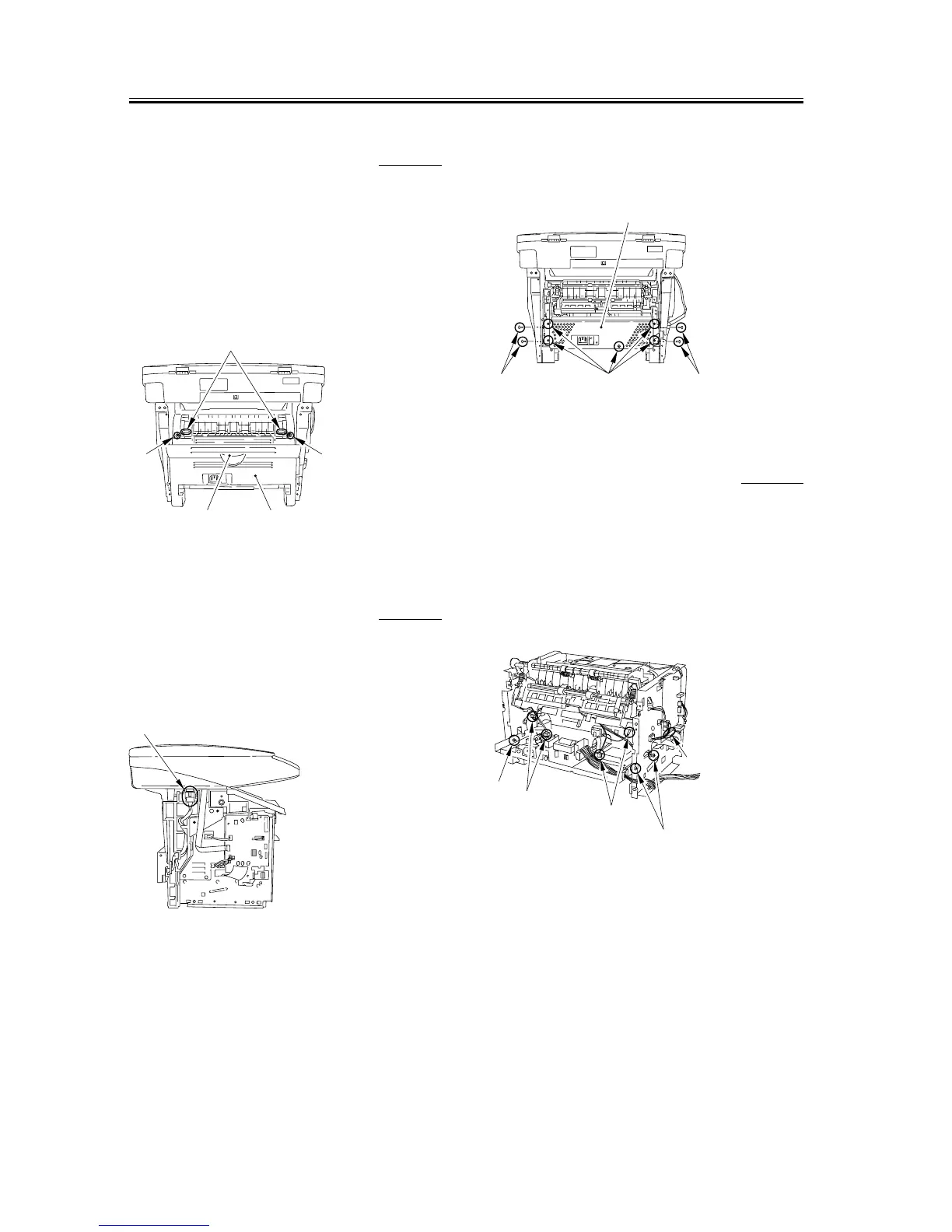

3.1.9.4 Removing the rear
cover
0007-7570
1) Opening the faceup cover [1], and then lower the
fixing pressure release levers [2] on both sides and
release the pressure.
2) Remove 2 screws [3].
3) Remove the rear cover [4] as you pull it toward you.
F-3-47
3.1.9.5 Removing the Power
Supply Shield Plate
0007-7694
1) Remove the connector [1] and remove the cable
from the cable guide.
F-3-48
2) Remove the 9 screws [1] to remove the power
supply shield plate [2].
F-3-49
3.1.9.6 Removing the Power
Supply Assembly
0007-7697
1) Remove the 3 screws [1]. (The external cover is
omitted from the illustration below to show the
instructions clearly.)
2) Remove the four connectors [2] as well as the flat
cable [3] on the ECNT board.
F-3-50
[1] [4]
[3] [3]
[2]
[1]
[2]
[1] [1][1]
[1]
[2]
[2]
[1]
[3]
