3-CONTROLSANDINSTRUMENTS

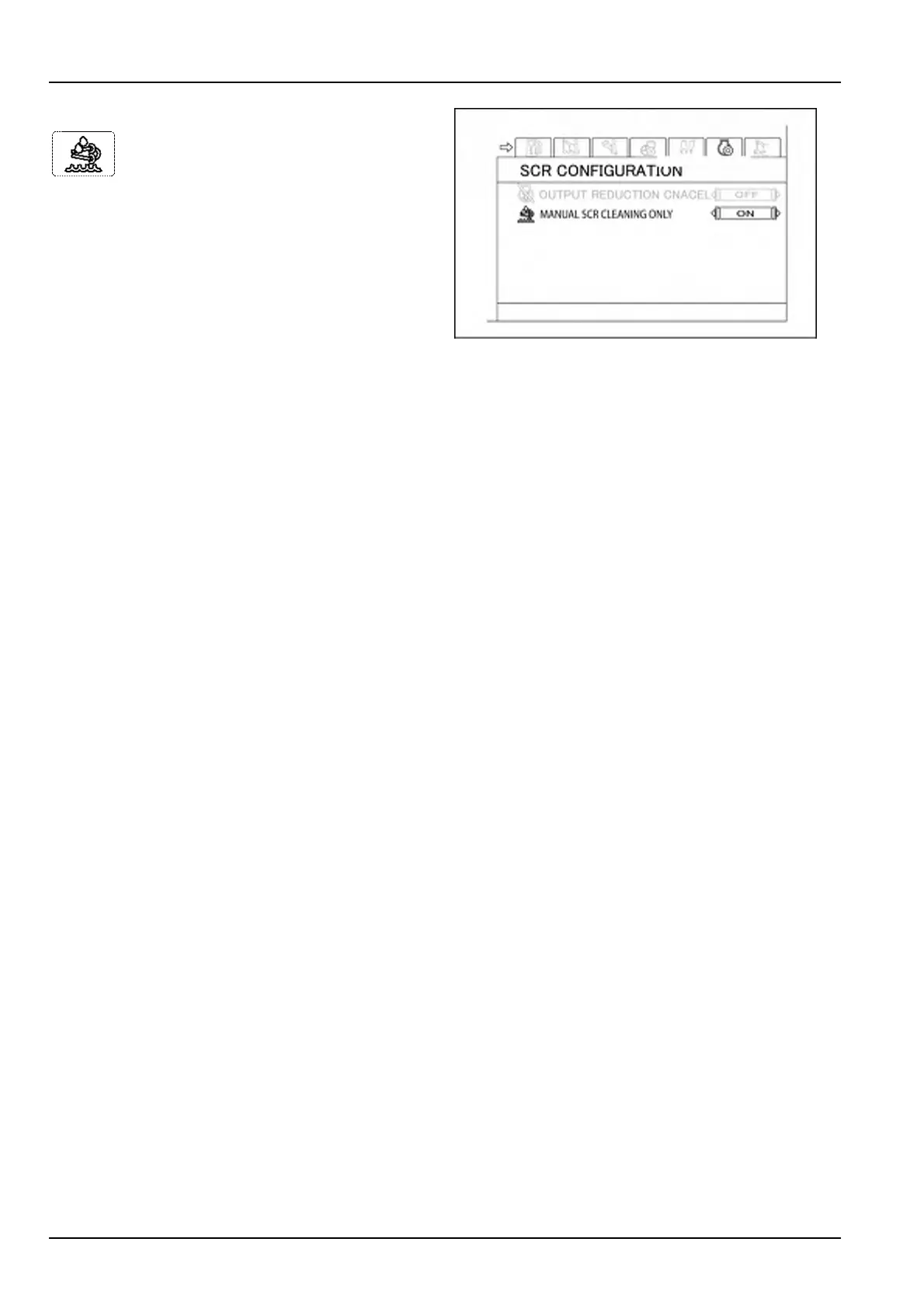

SCRconguration

SomesettingsoftheSCRsystemcanbe

changed.

OUTPUTREDUCTIONCANCEL（ON/OFF）

MANUALSCRCLEANINGONLY(ON/OFF)

Usetheup/downbuttonstoselectanitemandtheleft/

rightbuttonsornumerickeypadtochangethesetting.

NOTE:TheOUTPUTREDUCTIONCANCELsettingcan

bechangedonlyinspecicconditionswithoperational

limitations.

SMIL14CEX4935AA33
