6-MAINTENANCE

Every1000hours

Greasepoints(Boomandarm)

Greasetheboomandarmevery1000h.

Lubricant:CASEAKCELA251HEPMULTI-PURPOSEGREASE

SMIL17CEX3554FA1

NOTE:theboomandthearmshallbelubricatedevery50hifnon-genuinegreaseisused.

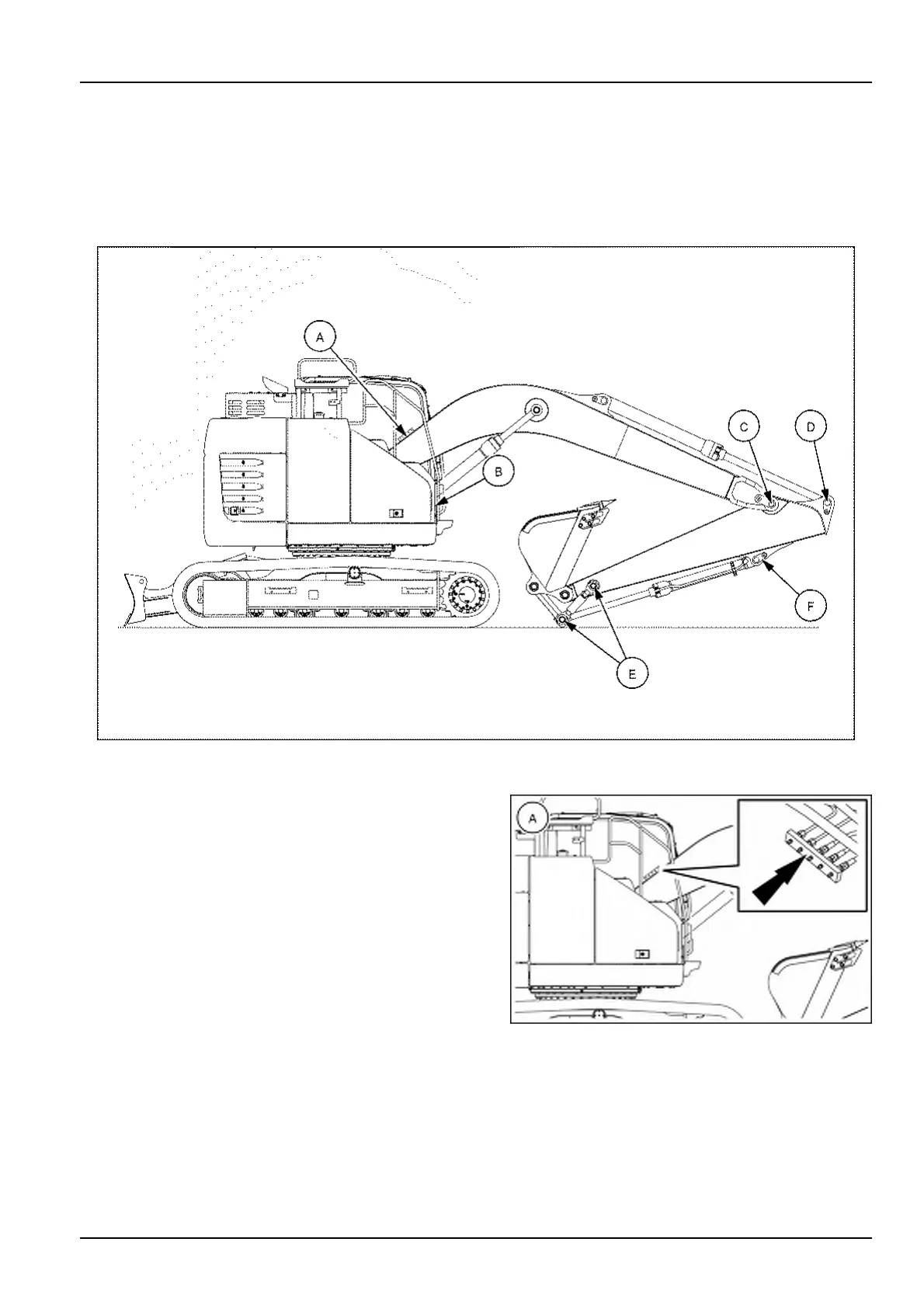

Boombottompin:twogreasettings.

Boomcylindertoppin:twogreasettings.

Armcylinderbottompin:onegreasetting.

SMIL17CEX3572AA2
