6-MAINTENANCE

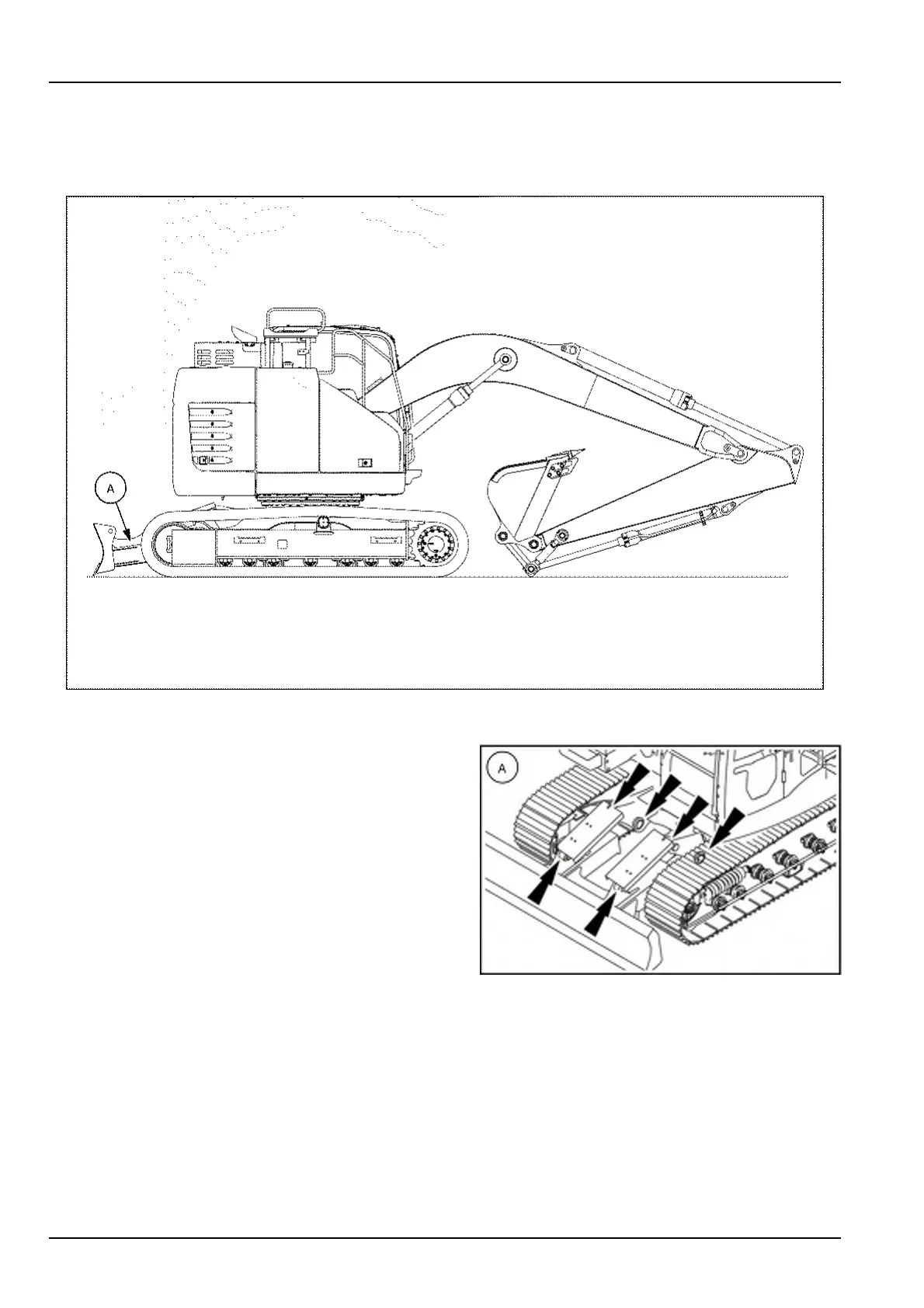

Greasepoints(Blade)

Greasethebladeevery50h.

Lubricant:CASEAKCELA251HEPMULTI-PURPOSEGREASE.

SMIL17CEX3554FA1

NOTE:thebladeshallbelubricatedevery10hifnon-genuinegreaseisused.

•

Blademainpins:twogreasettings.

•

Bladecylinderstoppins:twogreasettings.

•

Bladecylindersbottompins:twogreasettings.

NOTICE:thebladeshallbelubricatedevery10hifthe

machineisoperatedinwaterormud.

NOTE:afterlubrication,rettheprotectiveplasticcapsto

thegreasettings.

SMIL14CEX0107AA2

6-24
