3-CONTROLSANDINSTRUMENTS

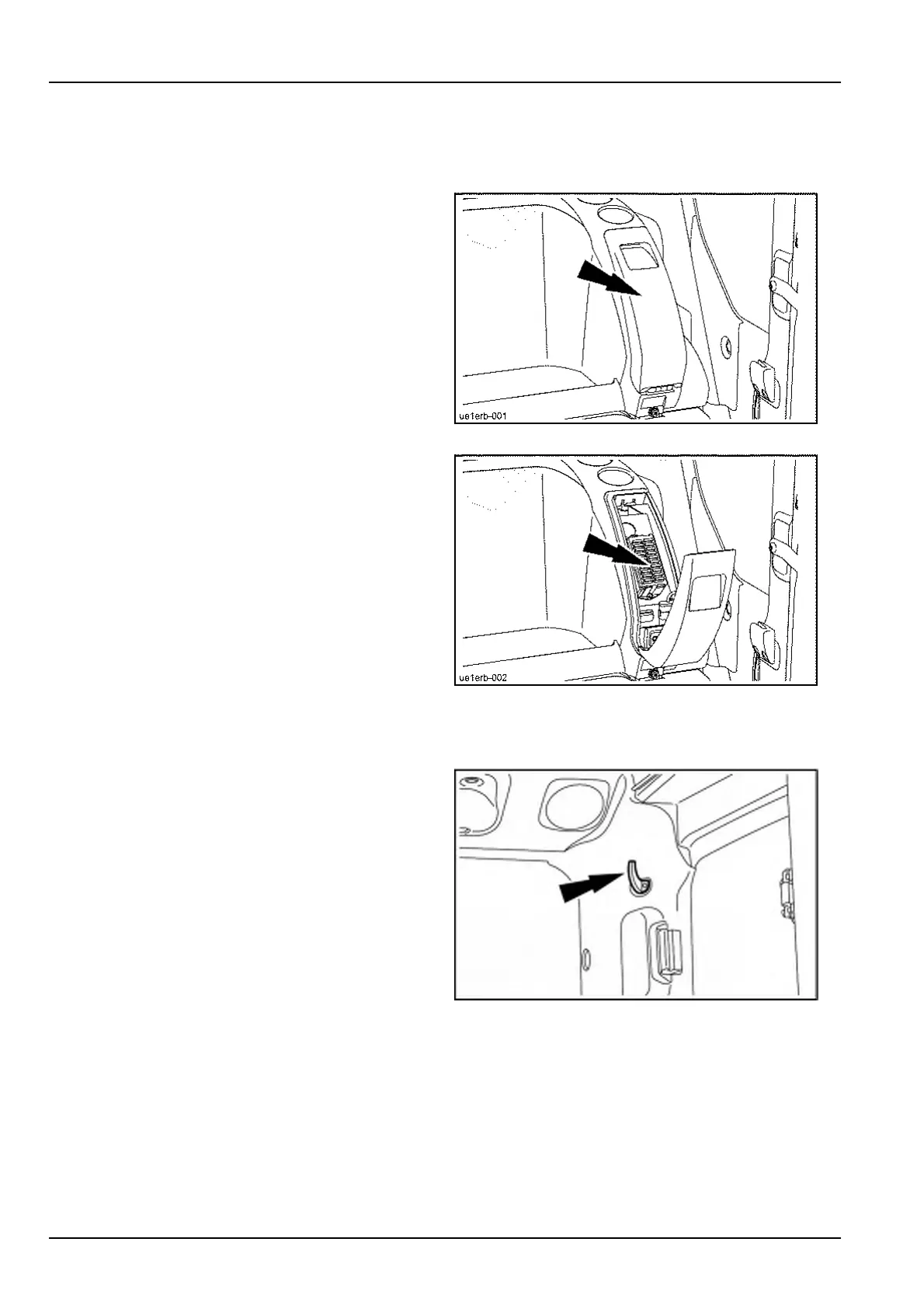

Rearwardcontrols

Fusebox

Locatedontheleft-handsite,behindtheoperator'sseat.

UE1ERB-001A1

Removethecoverofthefusebox.

UE1ERB-002A2

Coathangerhook

Thehookisontherearleft-handcabupright.

NOTICE:Takecarenottoobscuretheviewwithclothes

thataretoobulky.

SMIL13CEX2626AB1

3-56
