6-MAINTENANCE

Every250hours

Greasepoints(Bucket)

Greasethebucketlinkageevery250h.

Lubricant:CASEAKCELA251HEPMULTI-PURPOSEGREASE.

SMIL17CEX3554FA1

NOTE:thebucketlinkageshallbelubricatedevery10hifnon-genuinegreaseisused.

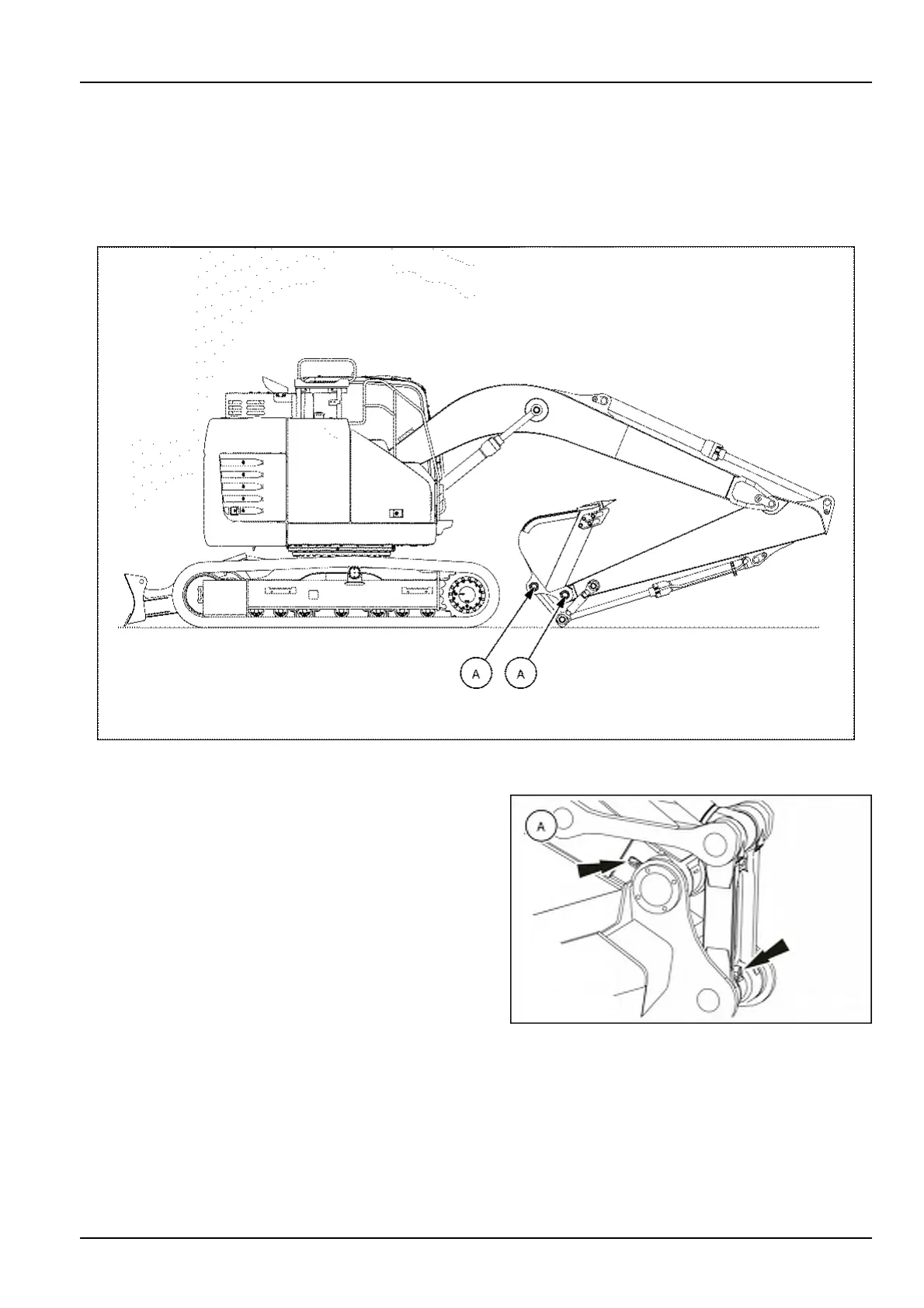

Bucketlinkage:twogreasettings.

NOTICE:thebucketlinkageshallbelubricatedevery10h

ifthemachineisoperatedinwaterormud.

NOTICE:thebucketlinkageshallbelubricatedevery10h

ifanyattachmentotherthanabucketisused.

SMIL14CEX2731AA2

6-25
