3-CONTROLSANDINSTRUMENTS

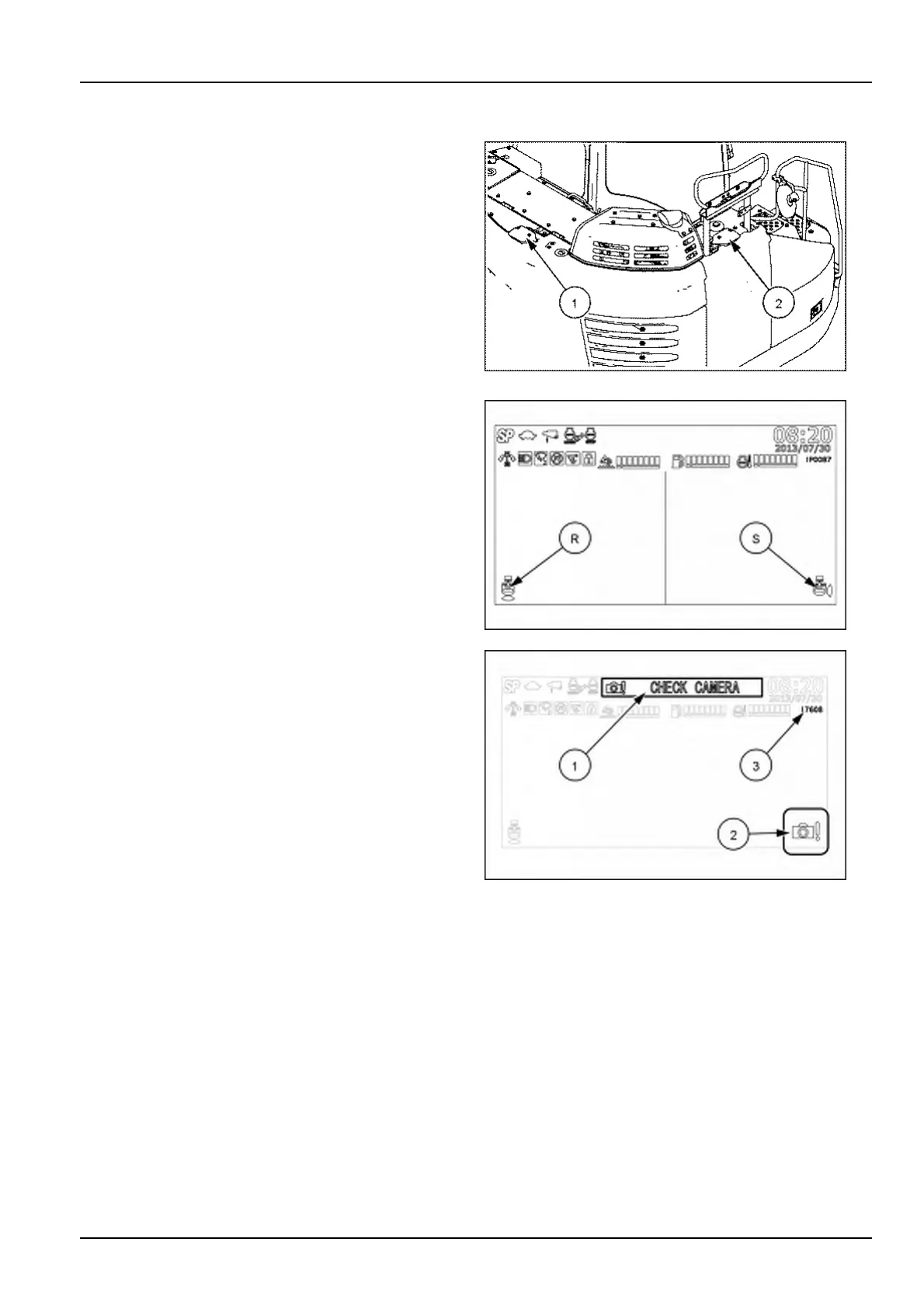

Rearviewcamera
Theexternalcameras,alongwiththeexternalmirrors,en-
surepropervisibilityaroundthemachineduringoperation.
Arearcamera(1)isinstalledonthecounterweight.A
right-sidecamera(2)isinstalledonthefueltank.
SMIL17CEX3236AA1
Theviewoftherearcamera(R)isshownontheleftside
ofthedisplay.Theviewoftherightsidecamera(S)is
shownontherightsideofthedisplay.
NOTICE:Neveroperatethemachinewhileonlylooking
attheimagesonthedisplay.Makesuretocheckthe
areaaroundthemachinebythedirectvieworthrough
themirrors.
NOTICE:Ifanymud,raindrops,snow,etc.areadhered
tothecameralens,theimagesonthedisplayaredeteri-
orated.Wipeawaydirtwithawetandsoftcloth,andthen
wipeitwithadryandsoftcloth.Makesurenottoscratch
thecameras.
Ifthecamerasorthecamerawiringshaveafailure,a
warningbuzzersoundsforabout5s,theCHECKCAM-
ERAmessage(1)andaDTC(3)appear,andthecamera
failureicon(2)isdisplayed.Moreover,theimageofthe
failedcameraisreplacedbyagreybackground.
SMIL16CEX1248AA2
SMIL16CEX1075AA3
3-67
