3-CONTROLSANDINSTRUMENTS

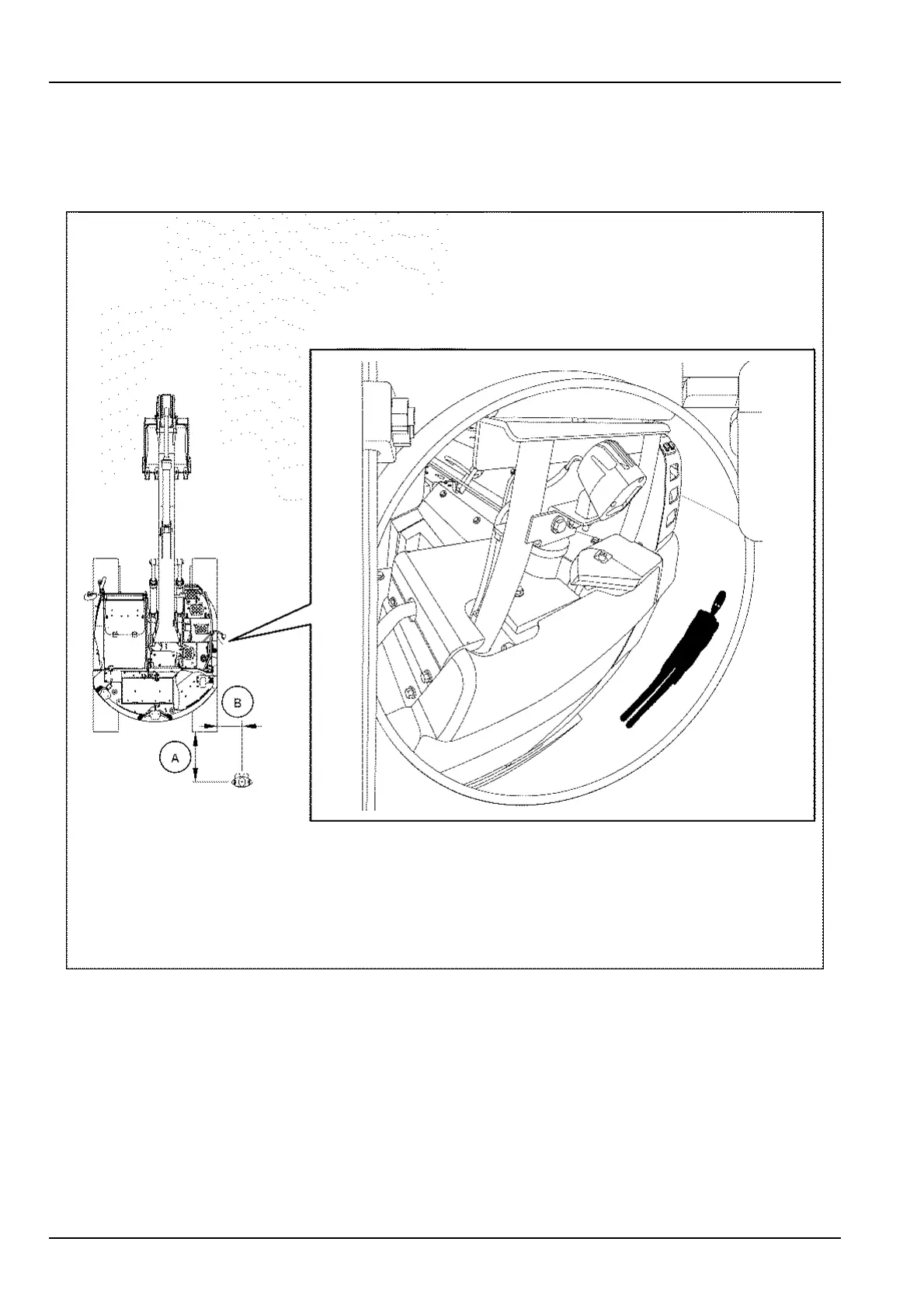

Themirrorshallbepositionedaccordingtothereferencesshowninpicture:
Thesideontherearrightofthemachineshallbevisible.
Theareaaroundareferencebodypositioned1m(39.4in)backfromtheedgeoftherighttrack(A)and0.5m
(19.7in)rightwardthemachine(B)shallbevisible.
SMIL17CEX3655GA8
NOTICE:Afterinstallingandpositioningallthemirrors,thevisibilityaroundthemachineshallbecheckedfromthe
operator'sseat.Settheseatintothedesiredposition,andmakesuretoconrmallthereferenceviewsinthemirrors.
Ifnecessary,netunethepositioningofthemirrorsinordertoensurepropervisibilityaroundthemachine.
3-66
