CASE CONSTRUCTION CX145D SR - Operators Seat

3-CONTROLSANDINSTRUMENTS
Operator'sseat
Operator'sseat

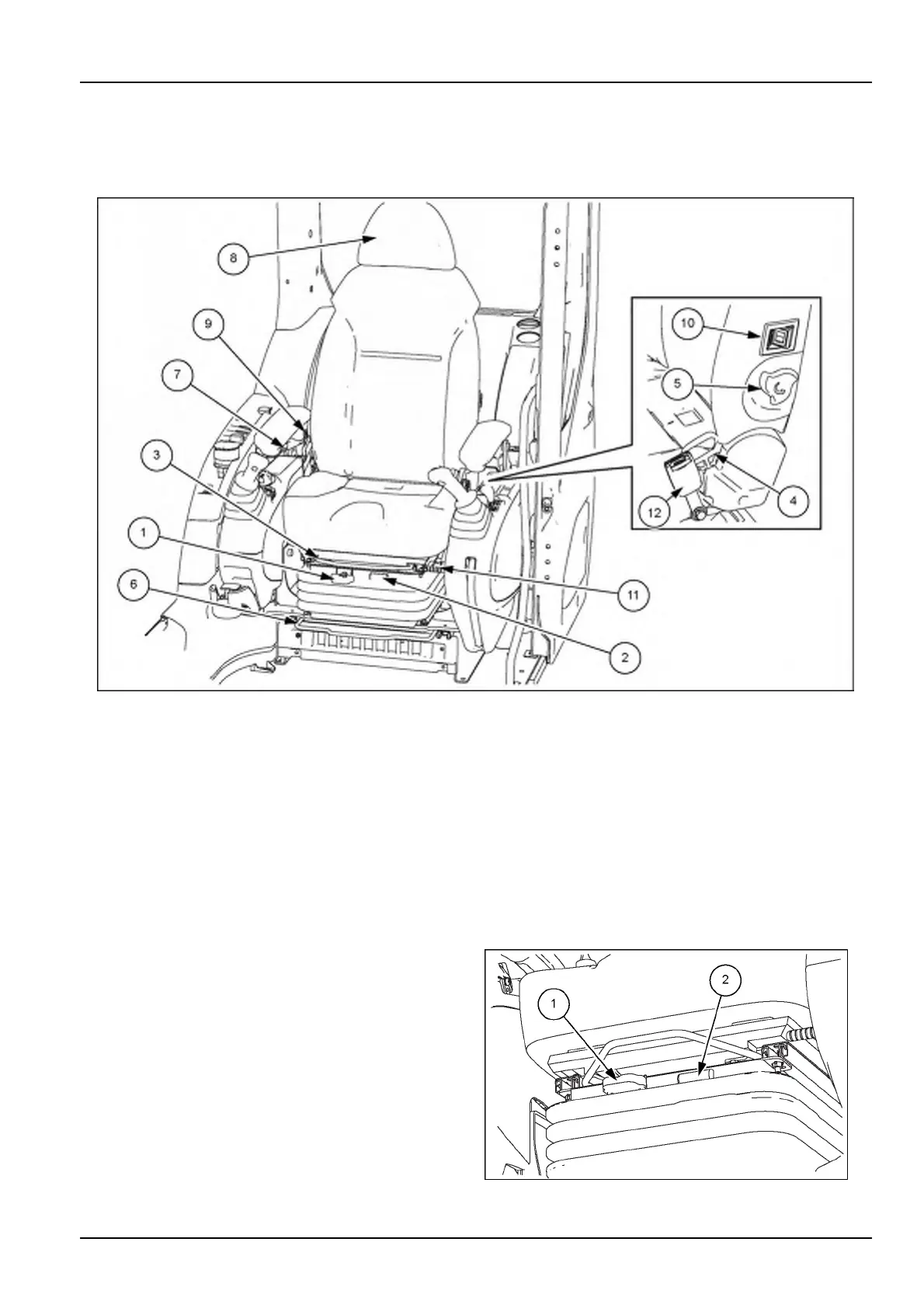

SMIL14CEX1654FB1
1.Combinedheightandweightadjustment
2.Weightadjustmentindicator
3.Foreandaftadjustment
4.Seatbackangleadjustment
5.Lumbarsupportadjustment
6.Seatandcontrolarmassemblyforeandaftadjust-
ment
7.Armrestangleadjustment
8.Headrestadjustment
9.Seatbelt
10.Seatheater
11.Seatangleadjustment
12.Seatbeltbuckle
Inordertooperatethemachinecorrectlyandwithmaximumefciencyandcomfort,adjusttheseattosuittheweight
andsizeoftheoperator.
Combinedheightandweightadjustment
•
Lowerthehandle(1)todecreasetherigidityofthesus-
pension.
•
Raisethehandle(1)toobtainhardersuspension.
NOTICE:theindicator(2)mustbegreenwhentheoper-
atorissittingontheseat.
