CASE CONSTRUCTION CX145D SR - Left-Hand Side Controls

3-CONTROLSANDINSTRUMENTS
Left-handsidecontrols
Left-handsidecontrols

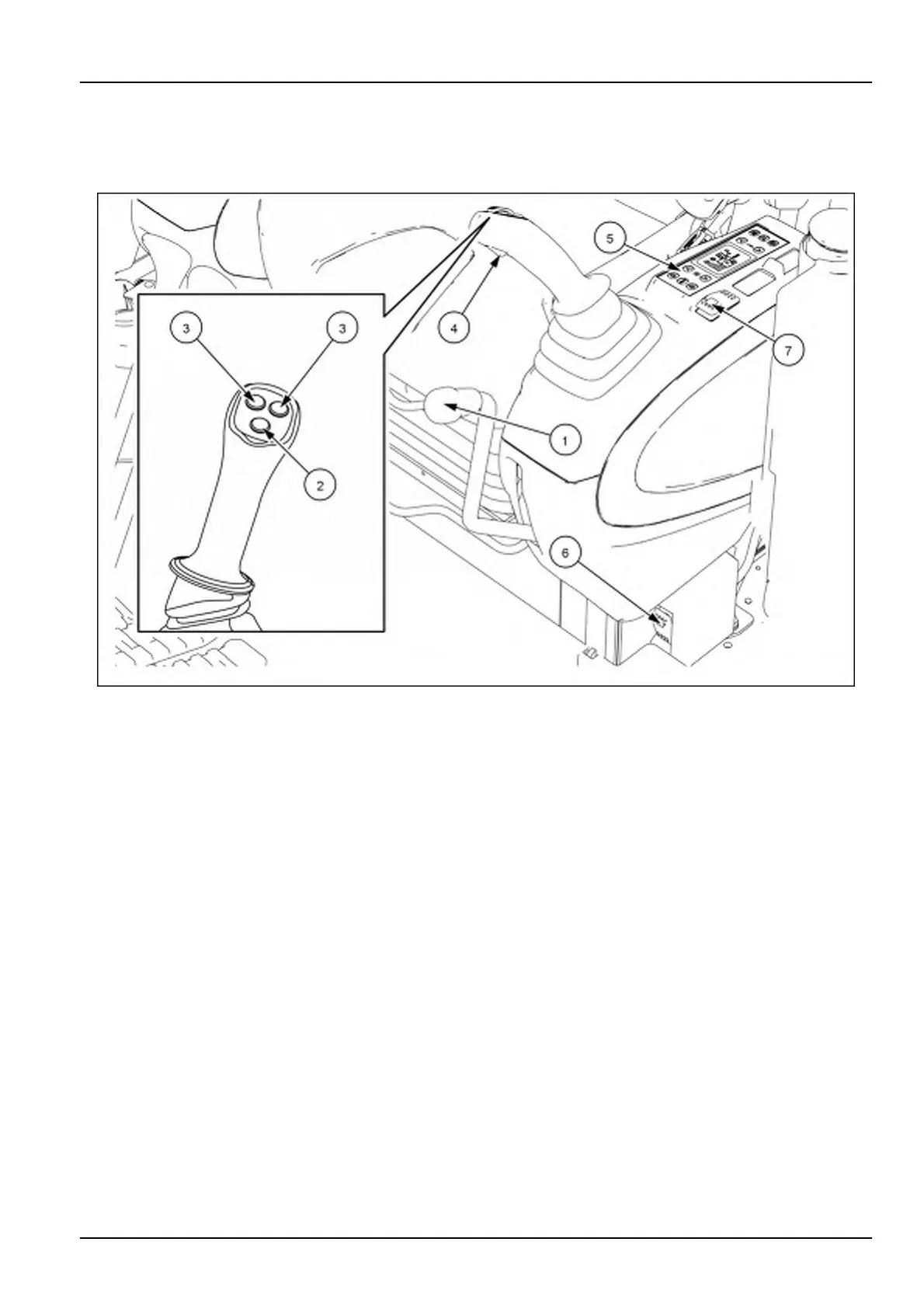

SMIL17CEX0196FA1
(1)Gatelocklever.
(2)Hornbutton.
NOTICE:makesuretosoundthehornbeforestartingthe
engineandresumingmachineoperation.
(3)Notactive.
(4)Radiomutebutton:theradiomutebuttonislocated
underneaththecontrollever.Pushthebuttontomutethe
volume.Pushitagaintoresumethevolume.
(5)Controlofheating,ventilationorairconditioning.
(6)Emergencystopswitch:theemergencystopswitch
enablestheenginetobeshutdowninemergencyor
whenitisnotpossibletoshutitdownbymeansofthe
starterkey.Pressonthetopoftheswitchtostoptheen-
gine.Theaudiblewarningdevicesoundsandthemes-
sageENGINESTOPisdisplayed.T ostarttheengine
again,pressonthebottomoftheemergencystopswitch,
turnthestarterkeytoOFFposition,andthenrestartthe
engine.
NOTICE:theemergencystopswitchshouldbeusedfor
emergencypurposeonly.
(7)Freeswingswitch:theswitchsetstheconditionof
swingstop.Ifthefreeswingisactivatedtheswingstopis
delayed.Pressonthefrontoftheswitchtoactivatethe
freeswingfunction.Thefreeswingiconappearsonthe
monitor.
Thefreeswingfunctionisintendedtobeusedespecially
forloadhandlingapplicationtoavoidloadsfromslinging.
Thefreeswingfunctionisautomaticallydisabledwhen
stoppingtheengine.
NOTICE:avoidworkingonaslopewiththefreeswing
functionactive.Theswingbecomeshardtostop.
NOTICE:whenparkingonaslope,neveractivatethefree
swingfunctionfromthemachineparkingposition.The
machinemaystarttoswingbecausetheswingparking
brakeisreleased.
