3-CONTROLSANDINSTRUMENTS

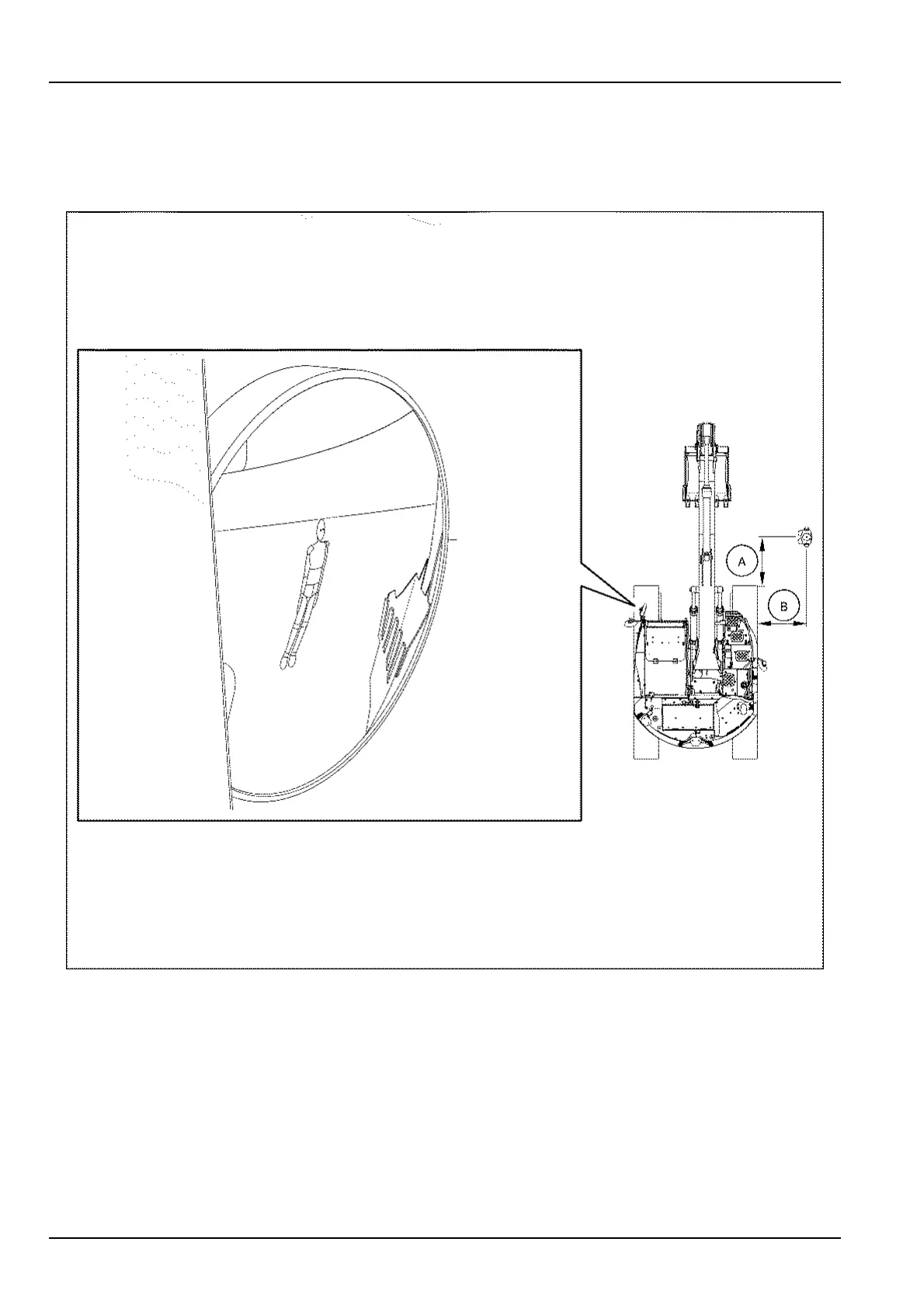

Themirrorshallbepositionedaccordingtothereferencesshowninpicture:
Thesideonthefrontrightofthemachineshallbevisible.
Theareaaroundareferencebodypositioned1m(39.4in)aheadfromtheedgeoftherighttrack(A)and1m
(39.4in)rightwardthemachine(B)shallbevisible.
SMIL17CEX3656GA6
NOTICE:Afterinstallingandpositioningallthemirrors,thevisibilityaroundthemachineshallbecheckedfromthe
operator'sseat.Settheseatintothedesiredposition,andmakesuretoconrmallthereferenceviewsinthemirrors.
Ifnecessary,netunethepositioningofthemirrorsinordertoensurepropervisibilityaroundthemachine.
3-64
