3-CONTROLSANDINSTRUMENTS

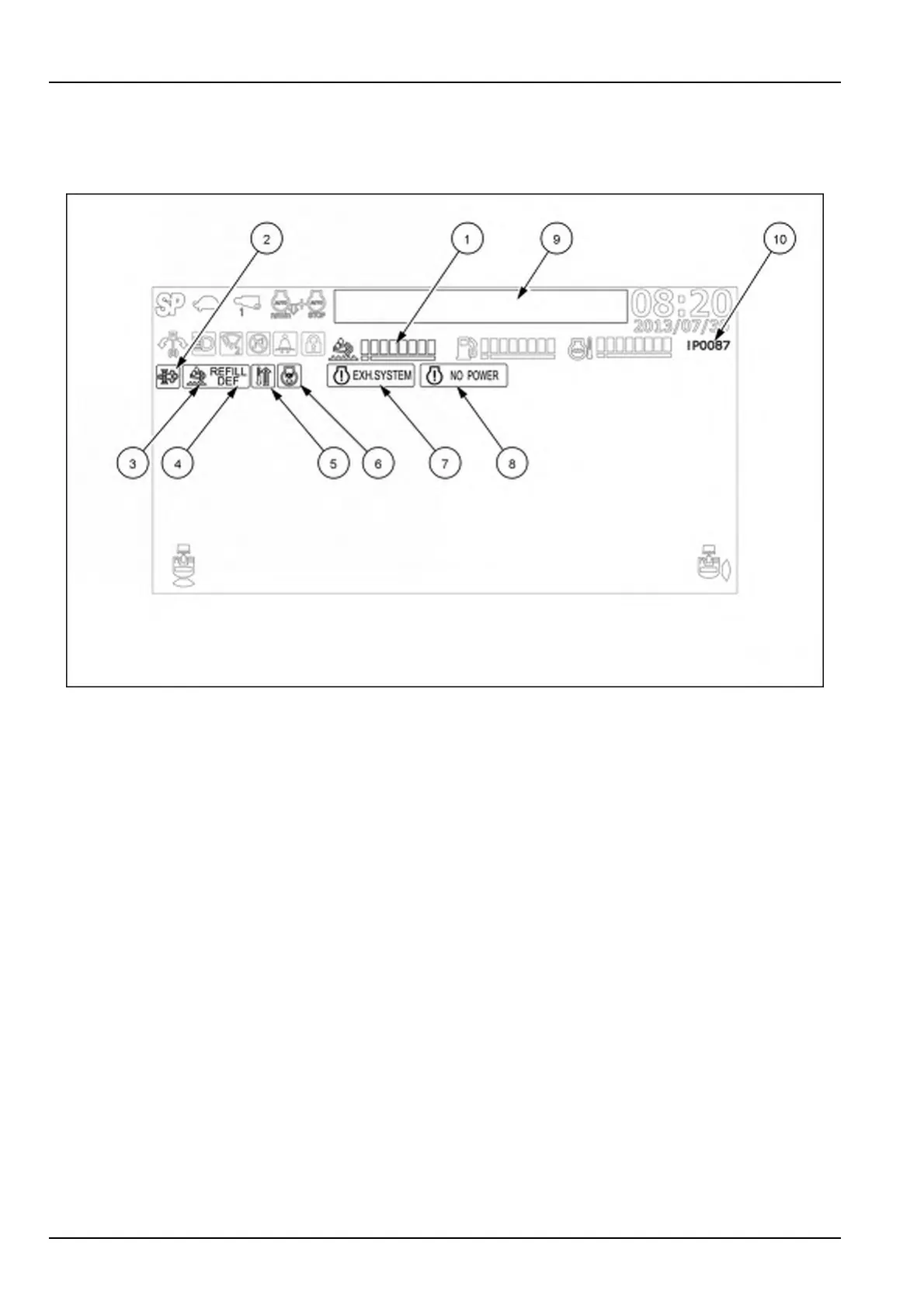

IconsandmessagesrelatedtoSCRsystem

ThemachinecontrolsystemmonitorsthefunctioningoftheSCRaftertreatmentsystem,displayingspecicicons,

warningsandmessagesinordereithertoinformaboutacondition,ortowarnaboutanactiontobetaken.

SMIL17CEX0593FA2

1.DEF/AdBlue®levelgauge

2.SCRCLEANINGicon

3.SCRdetectionicon

4.DEF/AdBlue®rellwarning

5.DEF/AdBlue®thawingicon

6.Enginederateicon

7.SCRfailurewarning

8.Enginenopowerwarning

9.Messages

10.DTC(DiagnosticTroubleCode)

3-80
