TheMANUALSCRCLEANINGisstoppedifanyofthefollowingisdone:
•
Theoperatorsetsthegatelocklevertounlockposition.
•
Theoperatorchangestheenginespeedthrottleposition.
•
TheoperatorpressestheSCRCLEANINGbutton.
TheSCRCLEANINGiconstartstoashinorangeandthemessagePUSHSCRSWITCHTOACTIVATEisdisplayed.
NOTICE:NeverrestartnormalmachineoperationwiththeMANUALSCRCLEANINGprocessbeingsuspended.The
SCRsystemwillbedamaged.ResumetheMANUALSCRCLEANINGprocessimmediately.
TheMANUALSCRCLEANINGisdisabledifanyofthefollowingoccurs:
•
TheMANUALSCRCLEANINGprocessisnotcompletedwithin40minafteritisstarted.
•
TheMANUALSCRCLEANINGisnotstartedwithin10hafterthemessagetorequestMANUALSCRCLEANING
(PUSHSCRSWITCHTOACTIVATE)isdisplayed.
Awarningalarmsoundsforapproximately2sandtheSCRCLEANINGiconturnsred.ThemessageCHECKEN-
GINEandaDTC(DiagnosticTroubleCode)appearonthedisplay.Immediatelystopmachineoperation,andcontact
theCASECONSTRUCTIONdealerformachinerepair.
MANUALSCRCLEANINGONLYfunction
Thepurposeofthisfunctionistoavoidhightemperature
exhaustinspecicoperatingconditions:
•
Operationinsidebuilding.
•
Operationunderground.
•
Operationnearcombustiblesorexplosives.

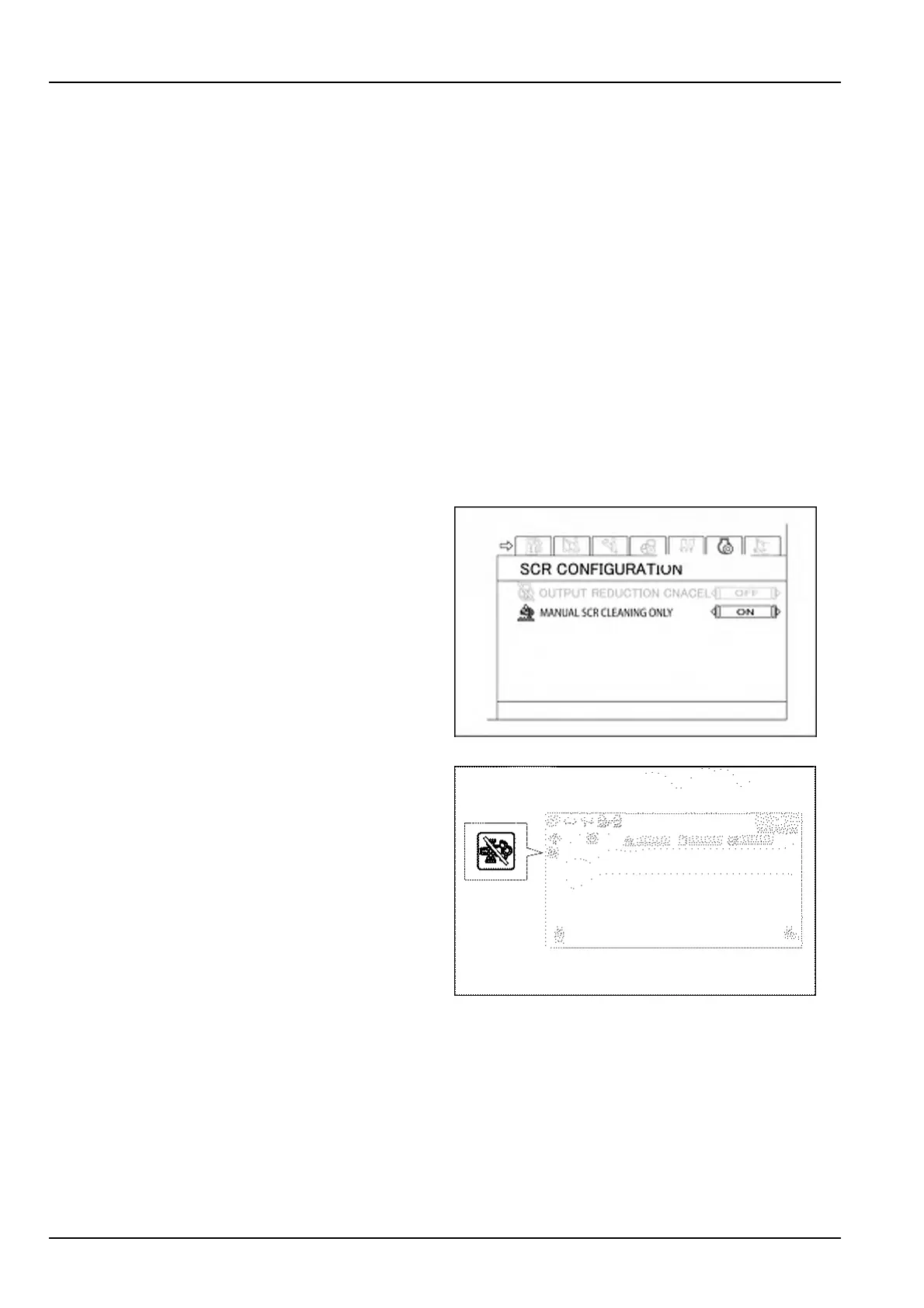

Toenablethefunction,setMANUALSCRCLEANING
ONLYtoONintheSCRCONFIGURATIONtaboftheuser
informationmode.
SMIL14CEX4935AA8
Resumingtheoperatingmodeofthedisplay,theSCR
CLEANINGiconappearsgreenandslashed.
NOTE:ThisfunctionisjustsuspendingAUTOSCR
CLEANINGthatoccursevery30h.Thesystemwill
requestMANUALSCRCLEANINGifAUTOSCRCLEAN-
INGissuspendedfor8h.Usethisfunctiononlywhenit
isnecessarytoavoidAUTOSCRCLEANINGforsafety
purpose.
SMIL16CEX0706AA9
