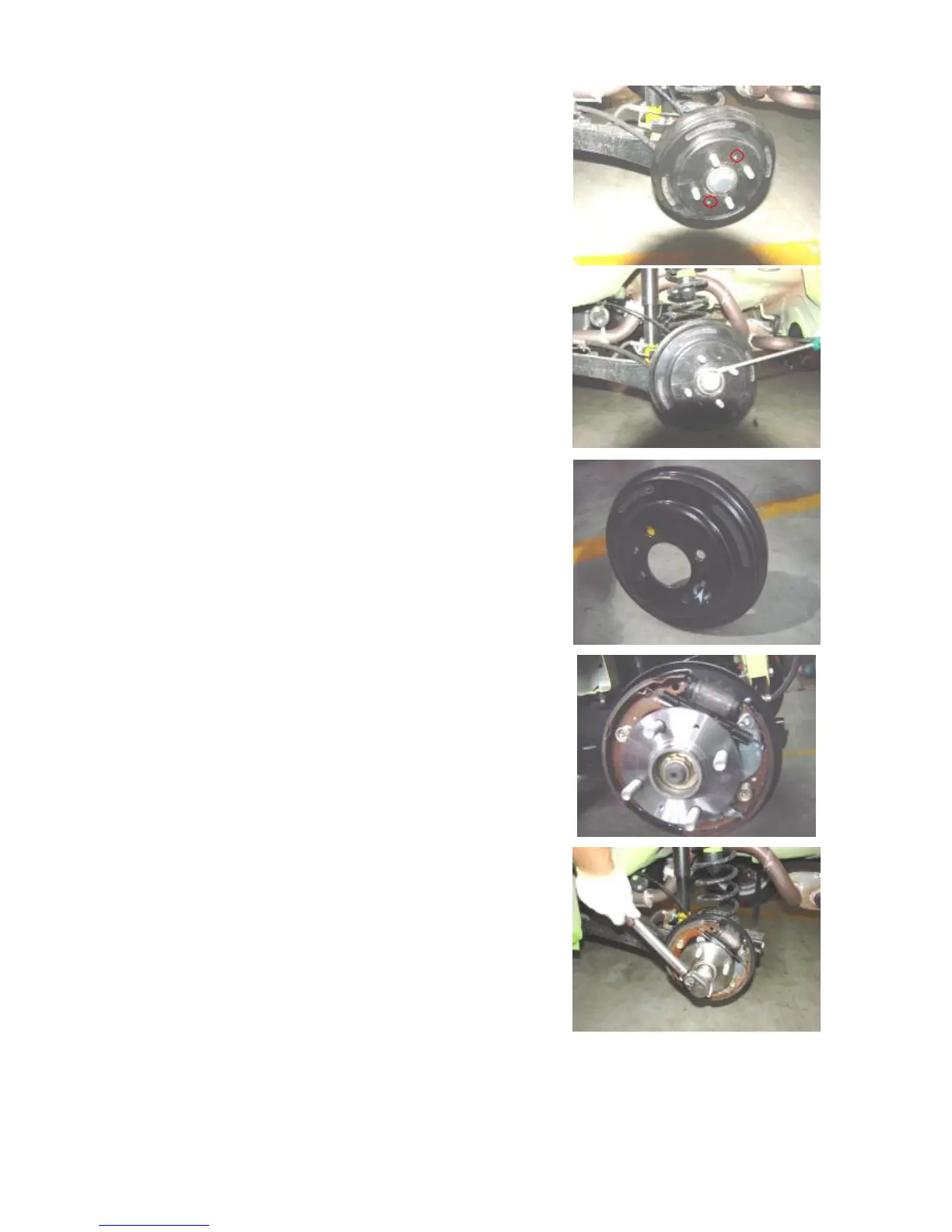

4. Removal Procedure
4.1 Remove the rear wheels (see the removal procedure of front
wheels).
4.2 Remove two position bolts from the brake drum with the cross
screwdriver.
4.3 Remove the bearing dust cap with slotted screwdriver.
4.4 Vibrate the brake drum to remove it.
4.5 Observe the rear braking structure.
4.6 If it’s necessary to check the brake drum bearing, remove the
lock nuts shown in the figure with 30# socket and torque wrench
and remove the brake drum bearing.
Torque: 250±10 Nm
