of which the operation method is same with that of the trouble code diagnosis.
In addition, when the ECU of the ABS has no trouble code, ground the line L and rotate the
key to the power on position. The flashing of the ABS warning lamp is conducted in

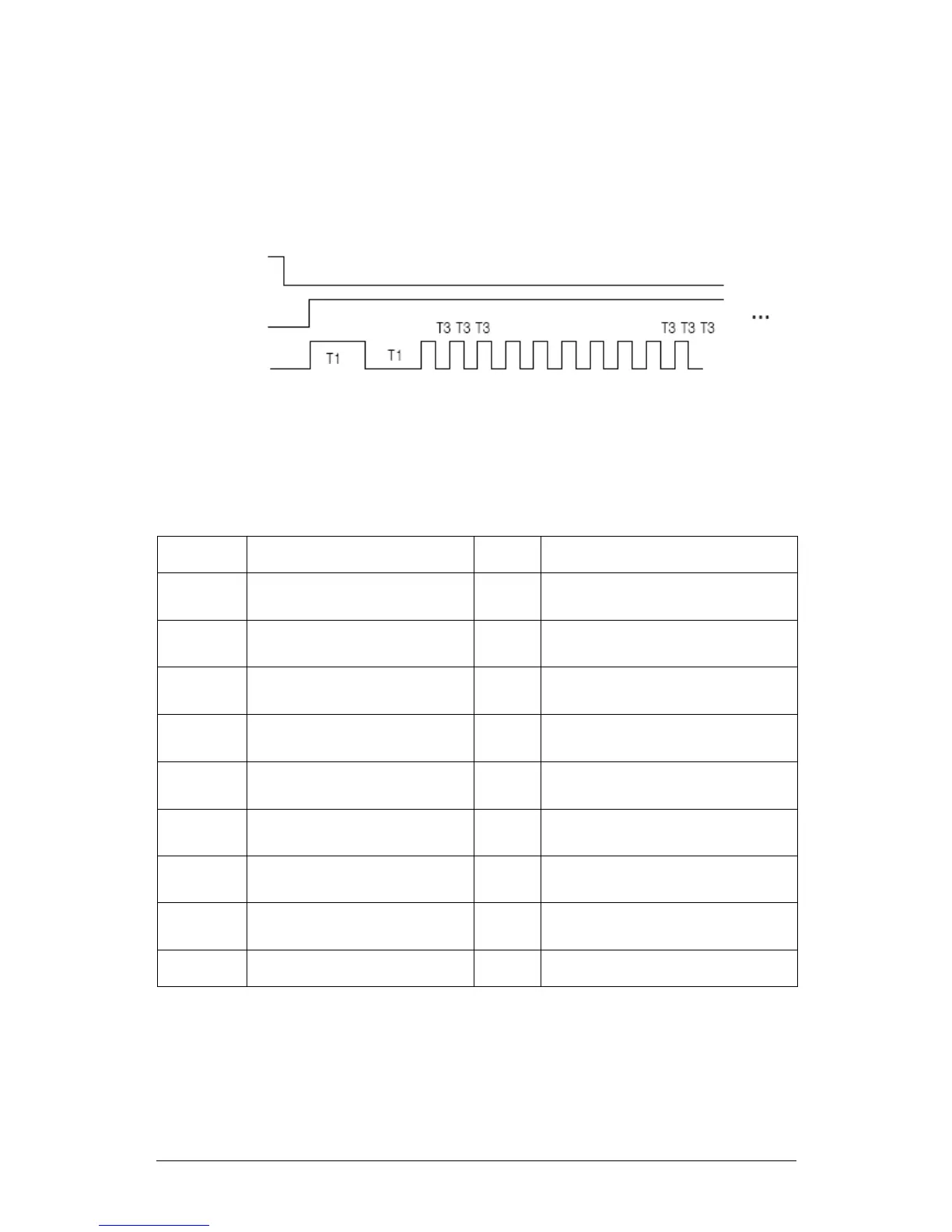

accordance with the type in following figure, of which the symbol meaning is same with the
foregoing section.
2.4 Trouble Checklist of Trouble Code
① Contents of Trouble Code
Trouble
code
Contents
Trouble
code
Contents
C1 200
(11)
Open-circuit/short-circuit of left
front sensor
C1 206
(31)
Open-circuit/short-circuit of left rear
sensor
C1 201
(12)
Interference of left front sensor or
gear ring
C1 207
(32)
Interference of left rear sensor or gear
ring
C1 202
(13)
Air gap error of left front sensor
C1 208
(33)
Air gap error of left rear sensor
C1 203
(21)
Open-circuit/short-circuit of right
front sensor
C1 209
(41)
Open-circuit/short-circuit of right rear
sensor
C1 204
(22)
Interference of right front sensor
or gear ring
C1 210
(42)
Interference of right rear sensor or
gear ring
C1 205
(23)
Air gap error of right front sensor
C1 211
(43)
Air gap error of right rear sensor
C1 101
(51)
Battery voltage too high (above
17V)
C2 112
(54)
Trouble of electromagnetic valve fuse
or electromagnetic relay
C1 102
(52)
Battery voltage too low (below
9.4V)
C2 402
(55)
Trouble of motor fuse or motor
C1 604
(53)
Trouble of ECU internal circuit or
electromagnetic valve coil
Line L
Ignition
Switch
ABS
warning
lamp
