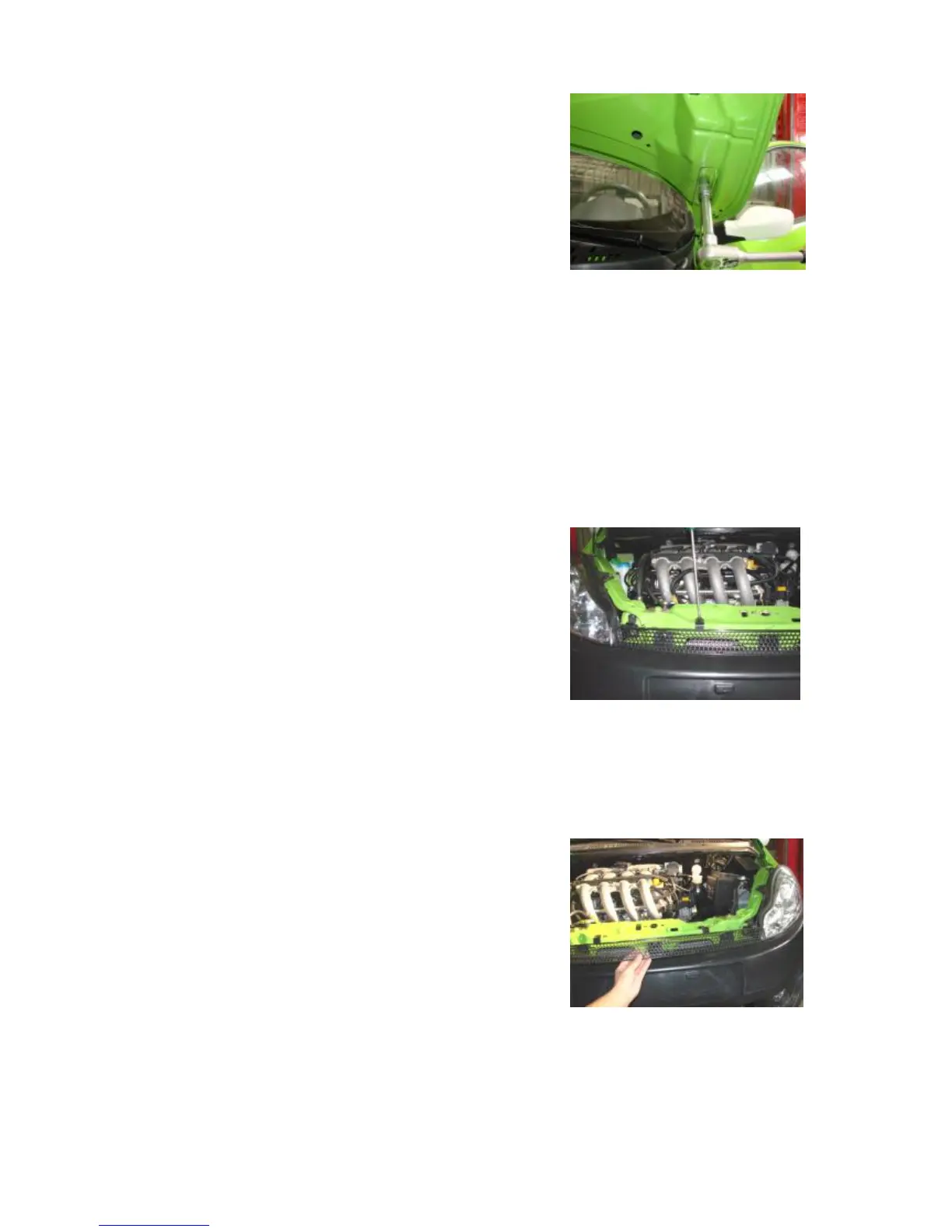

4. Removal & Adjustment of of Front Hood Assembly
Preparation of Tools: 13# sleeve, wheel wrench and extension bar
4.1. Turn and remove the four adjusting bolts off the front hood, and
then the front hood can be taken down. And the positing of the front
hood can be adjusted in all directions by loosening the four
adjusting bolts.
4.2. Installation of Front Hood Assembly:
The installation steps are reverse to those for removal.
Installation torque is 29±3Nm
5. Removal and Installation of Air Inlet Grid Assembly
5.1. Removal Steps
5.1.1. Use the wrench to remove the four fastening screws on the Air
Inlet Grid assembly as shown in the picture.
5.1.2. Remove the Air Inlet Grid.
5.2. Installation Steps
The installation steps are reverse to those for removal.
Installation torque is 5±0.5Nm
