Chapter 3 Removal/Installation and Overhaul of Steering System
I. Removal/Installation of Steering Gear

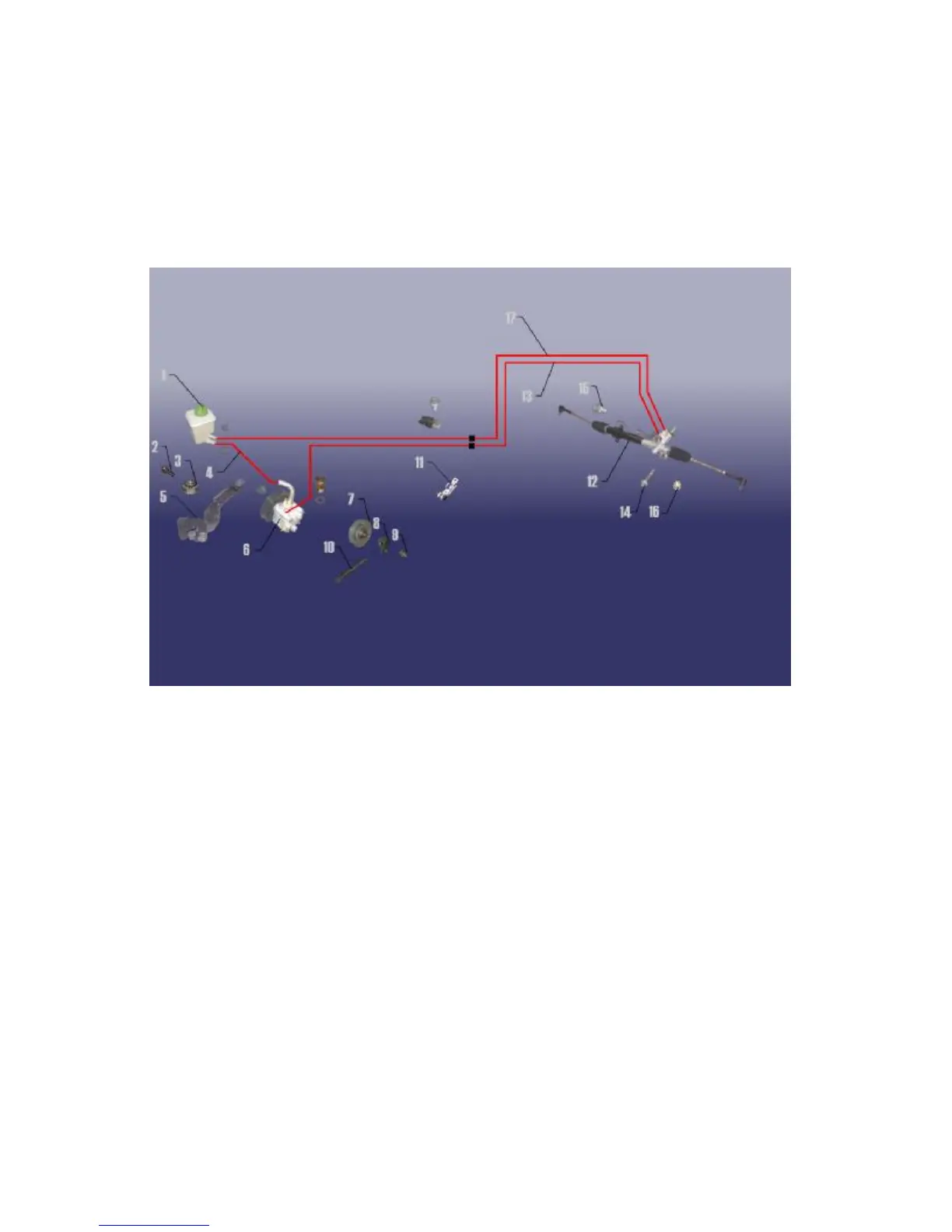

1. System Composition Illustration
1. Booster steering liquid reservoir 2. Bracket fixing bolt
3. Bracket fixing nut 4. Outlet pipeline
5. Reservoir fixing bracket 6. Steering pump
7. Tensioner 8. Lock nut
9. Adjustment nut 10. Adjustment tie rod
11. Pipe clamp 12. Steering gear
13. Outlet pipeline 14. 15. Fixing bolt
16. Fixing nut 17. Return pipeline
