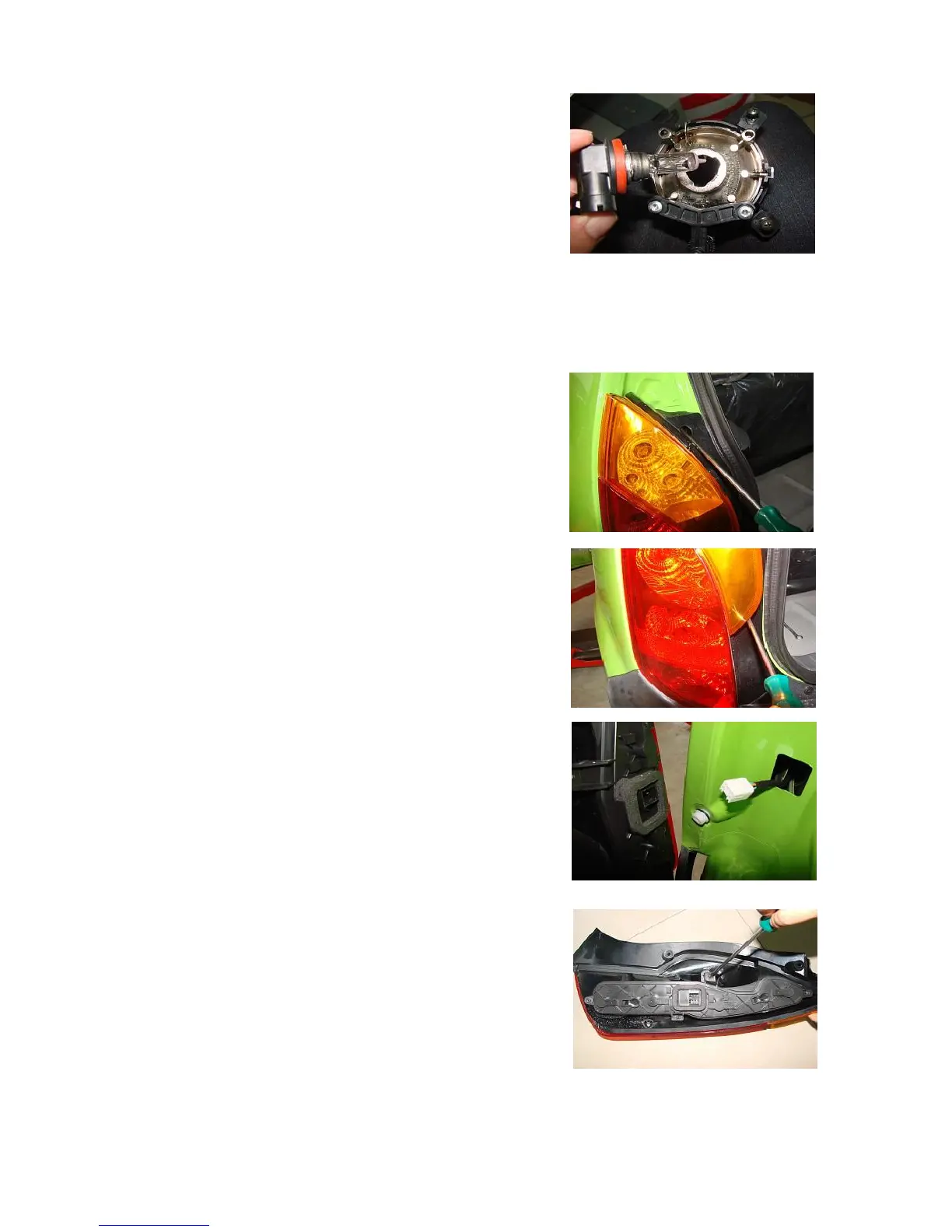

5. Removal of Tail Lights
5.1. Open the rear door.
5.2. Use a cross head screwdriver to loosen off the screws fixing the
left tail light.
5.3. Remove the left tail light, unplug the left tail light harness
connector, and then disassemble the left tail light assembly.
5.4. Use a cross head screwdriver to loosen off the four screws that
fix the tail light holder and open it.
