IV. Adjustment and Replacement of Handbrake

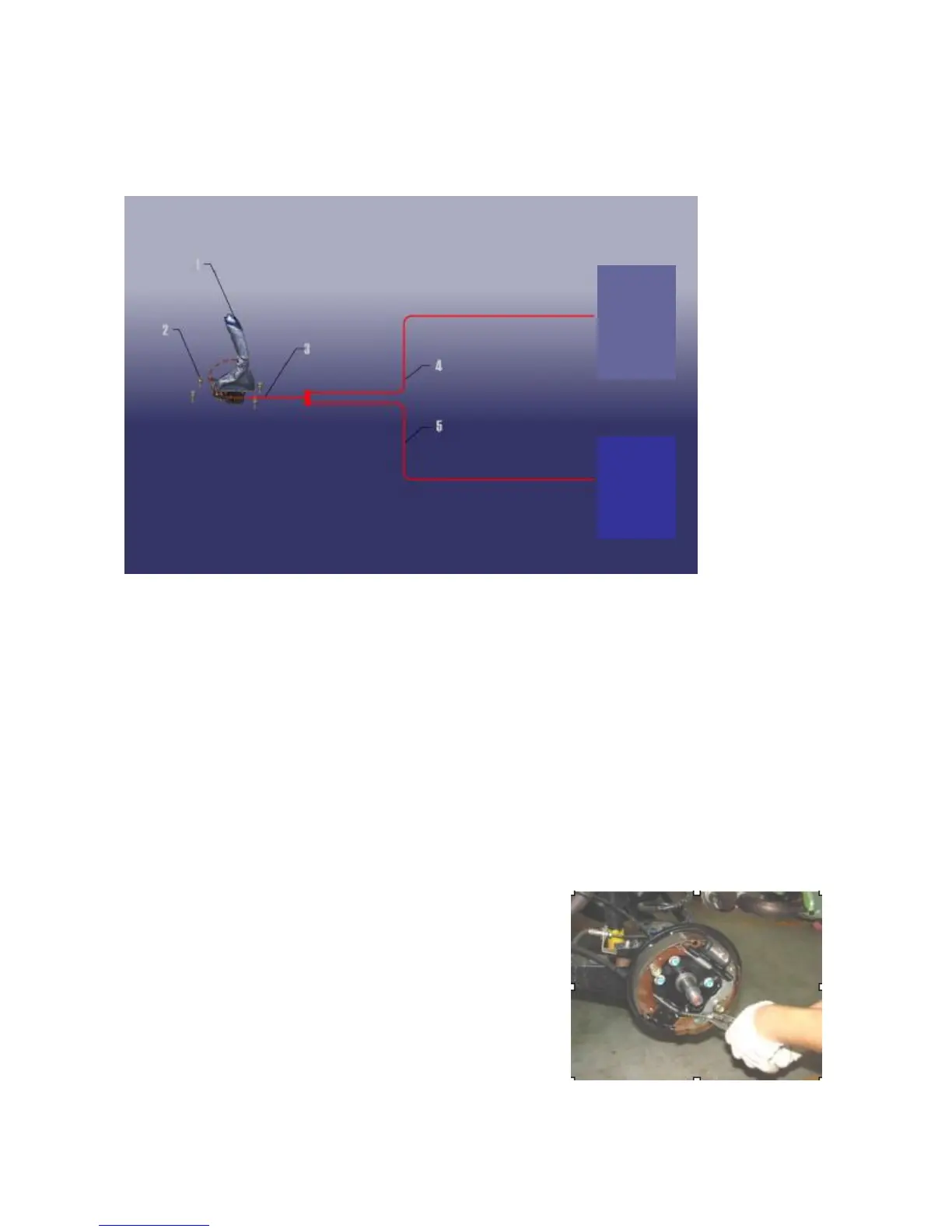

1. System Composition Illustration
1. Handle 2. Fixing bolts 3. Cable 4, 5. Left/Right rear wheel cable
2. Preparations
Tools: Ratchet wheel, ratchet lever, 10#, 13#, 14#, 16# socket, 10#
13#, 14# ring wrench, vice, torque wrench, slotted screwdriver.
3. Notices
3.1 Please wear necessary labor protection supplies to avoid accidents.
3.2 During the removal/installation of the spring parts, enough cautions should be taken to prevent the ejection
of such parts from causing body injuries.
3.3 The removal/installation at the vicinity of the exhaust pipe must be conducted only after the temperature of
the exhaust pipe is lowered to normal temperature so as to prevent scald.
4. Removal/Installation Procedure
4.1 With reference to the removal/installation of the rear brake,
loosen the handbrake cable of the rear wheels.
T
rear
brake
assembly
To right
rear
brake
assembly
To Next Page
