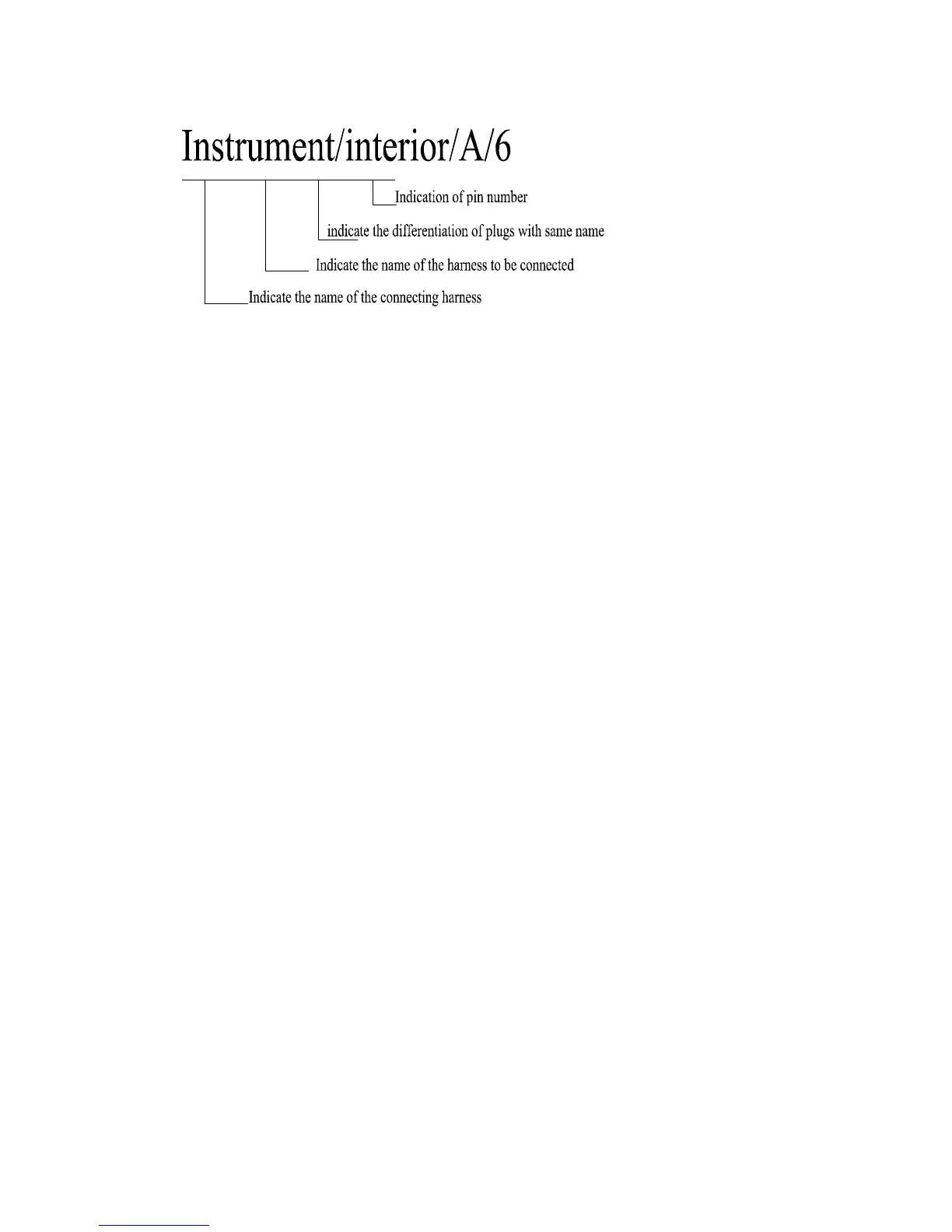

“Instrument/interior/A/6” indicates the #6 pin of plug A of instrument harness and interior harness
connectors;
4.2. “To anti-deterrent module A5” indicates “to #5 pin of plug A of anti-deterrent module”;
4.3. “To ECU25” indicates “to #25 pin of ECU";
V. Fuse Definition
1. Fuse Number
The fuse number within the front compartment relay box is expressed by “EF+number” and
“SF+number”.
The fuse number within the instrument relay box is expressed by “F+number”.
