Chery A113 - III. Removal and Installation of Right-rear Door In-door Harness

II. Instructions on Main Connectors
III. Removal and Installation of Right-rear Door In-door Harness
Part number: S21-3724180
(I). Preparations
Tools: sleeve wrench, cross head screwdriver, flat head screwdriver
(II). Notes
When disassembling the electrical components and harness, please disconnect the power supply.
The ignition switch must be OFF.
(III). Removal Steps
1. Removal

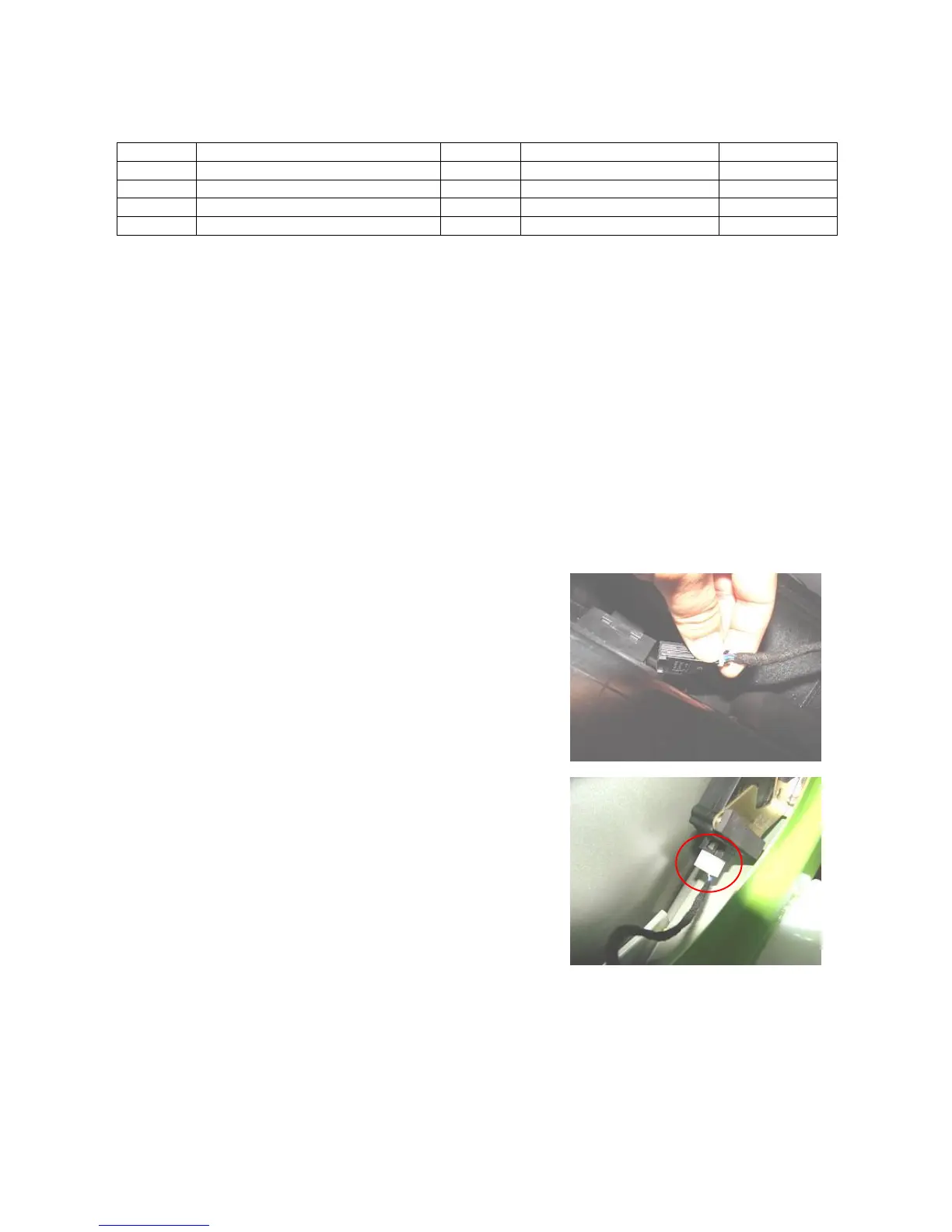

1.1. Disassemble the rear inside door shield. (See Removal of Inside
Door Shield)
1.2. And then remove the inside left-rear door protecting film.
1.3. Unplug right-rear window connector.
1.4. Unplug the door lock harness connector.
No Connector Name Pins Connection Remark
1 Right-rear window switch connector 10 Right-rear window switch
2 Right-rear door lock connector 4 Right-rear door lock
3 To in-door harness connector A 10 In-door harness A
4 Rear window motor connector 2 Rear window motor
