II. Instructions on Main Connectors
III. Removal and Installation of Rear Defroster Harness
Defroster harness positive part number: S12-3724530
Defroster harness negative part number: S12-3724540
(I). Preparations
Tools: sleeve wrench, cross head screwdriver, flat head screwdriver
(II). Notes
When disassembling the electrical components and harness, disconnect the power supply.
The ignition switch must be OFF.
(III). Removal Steps

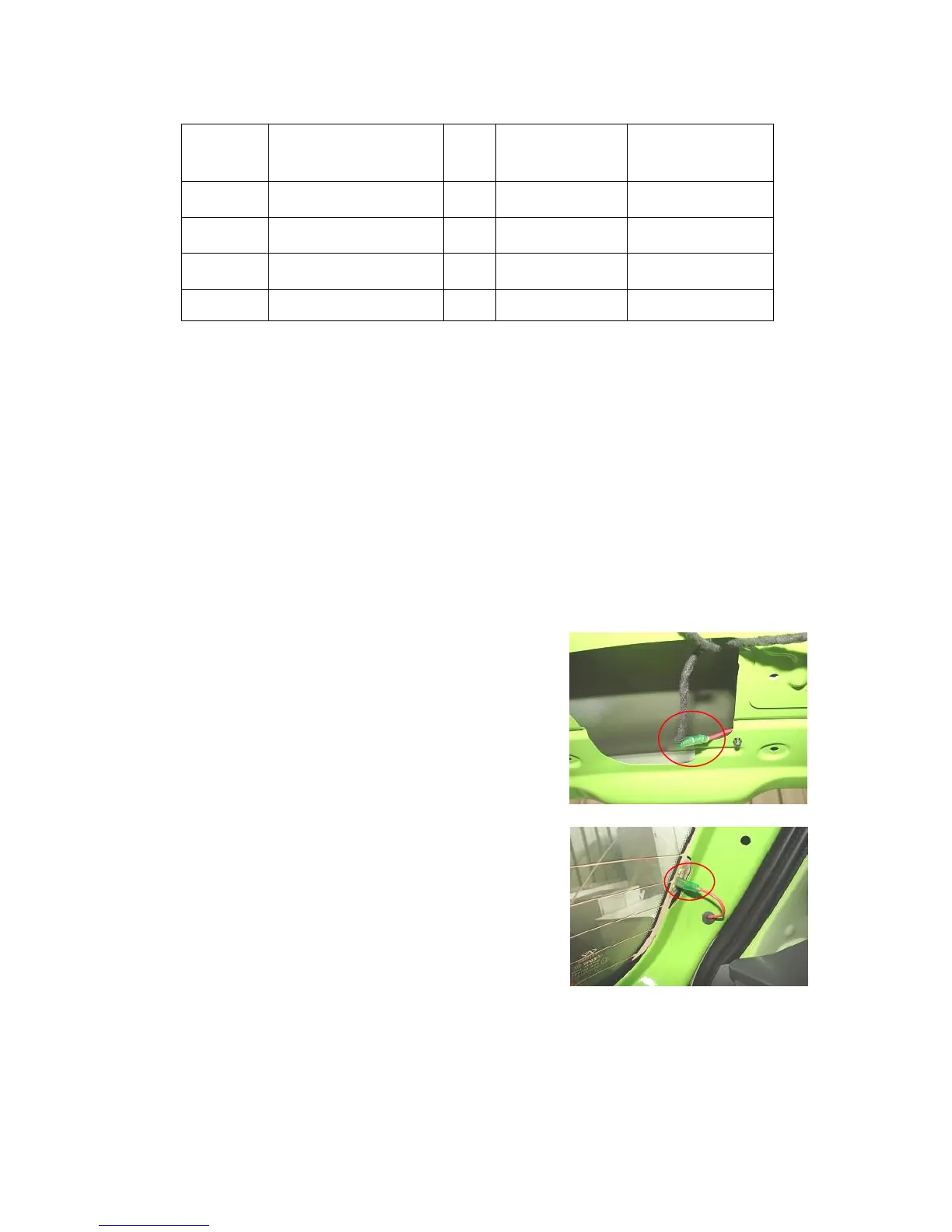

1. Unplug the defroster harness connector.
2. Unplug the left-rear defroster connector.
No Connector Name Pins Connection Remark
1 Defroster positive
connector
1 Defroster positive
2 Defroster negative
connector
1 Defroster negative
3 Tail door harness
connector
1 Tail door harness
4 Vehicle body ground wire
1 Vehicle body On the tail door
