Section II Front Compartment Harness

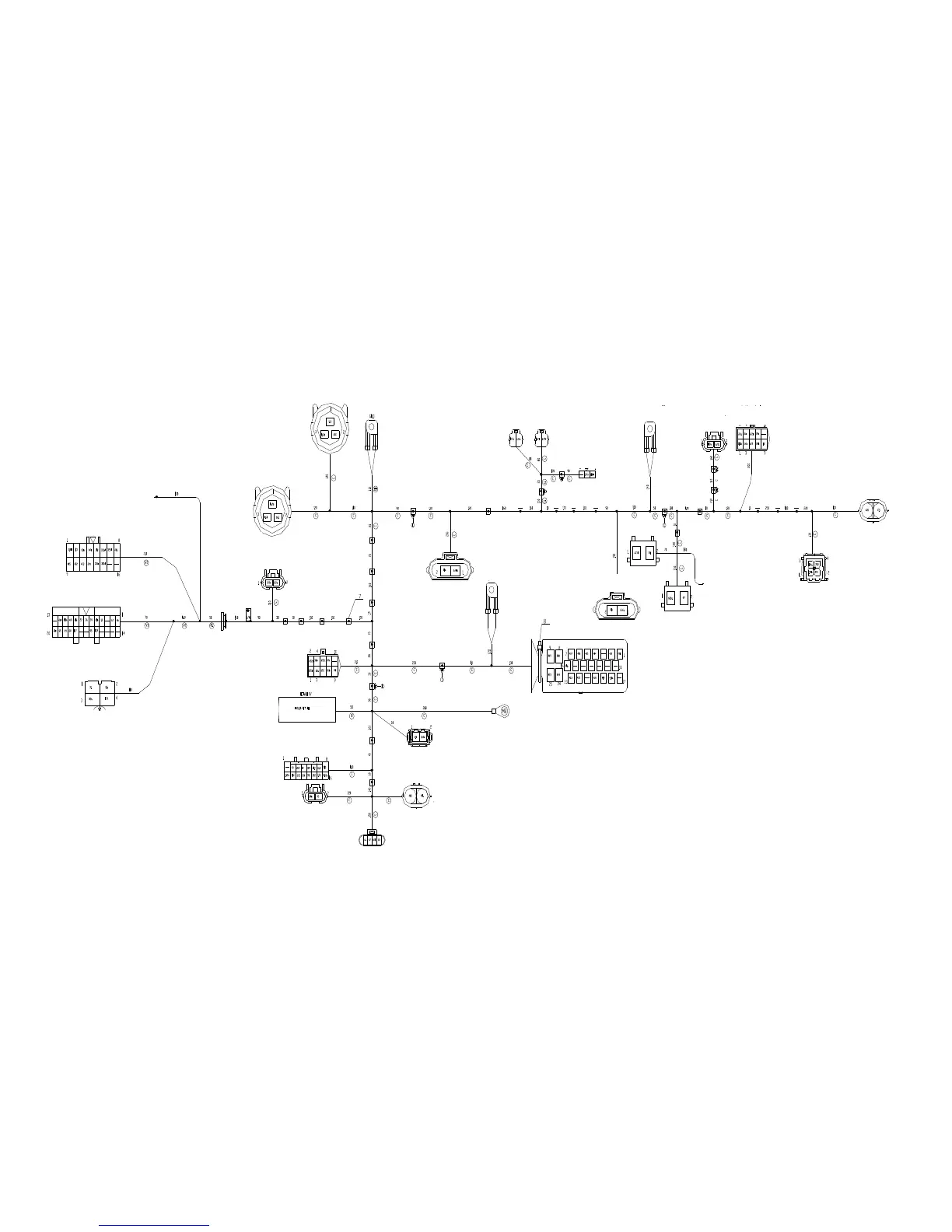

I. Harness Sketch
To in-door harness
Washing fluid pipe
Fan motor 2
Left turning light
Fan motor 1
Ground B
Horn (1) Horn (2)
Engine
compartment
contact switch
Ground A
LF fog light
To battery
Anti-theft horn
LF wheel ABS
sensor
Front wiper motor
Brake fluid sensor
To engine harness
Left
front combined
headlight
To instrument
harness B
To instrument
ha
rness A
Front washer
motor
Washing fluid pipe
Rear washer
motor
RF fog light
A/C high/low
pressure switch
RF wheel ABS
sensor
Right
front combined
headlight
Ground C
Right
turning light
ABS controller
