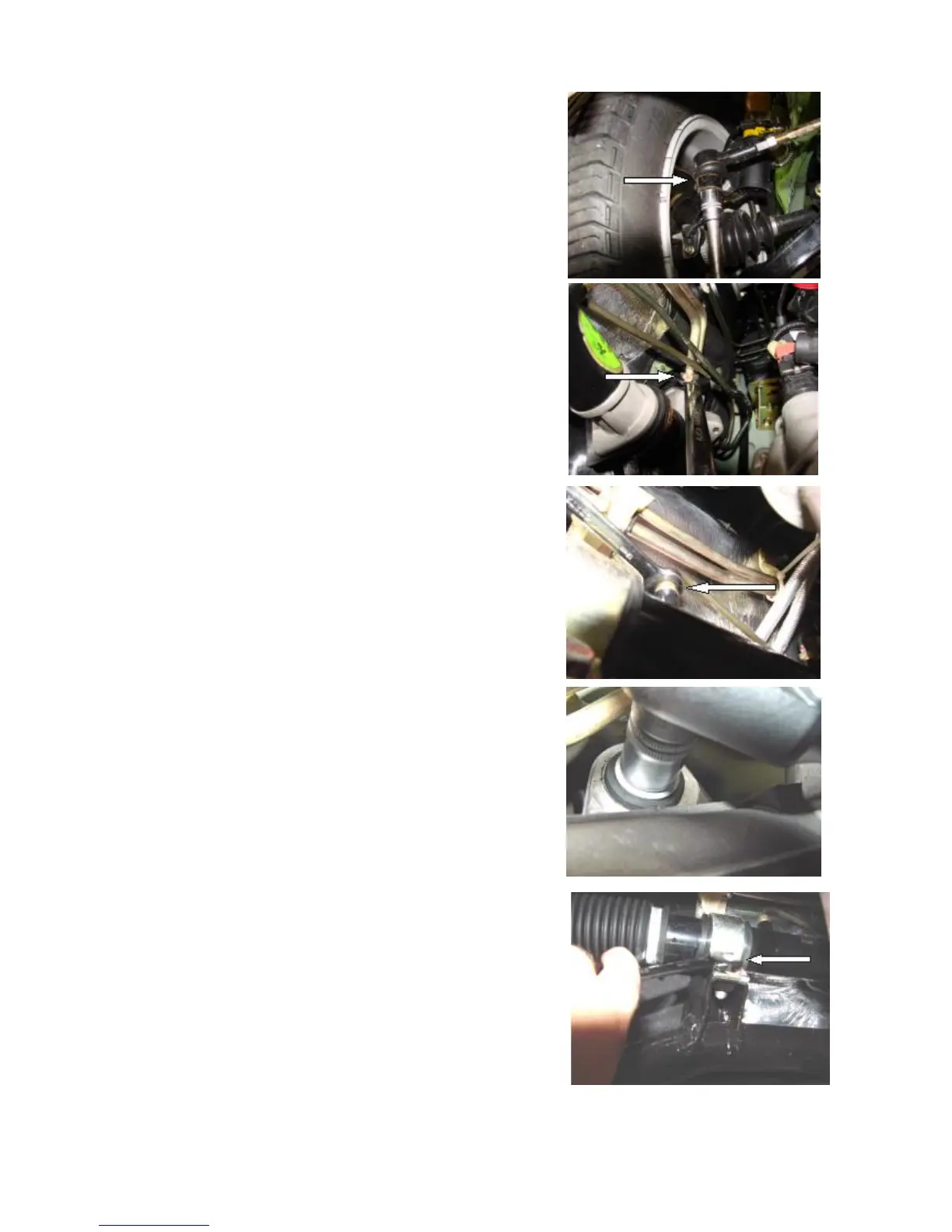

4. Removal/Installation Procedure
4.1 Remove the fixing nuts at the both sides of steering ball joint
with 19# socket.
Torque: 40±5 Nm
4.2 Loosen the fixing nuts under the booster steering hose with 17#
non-adjustable wrench.
Torque: 25±5 Nm
4.3 Loosen the fixing nuts above the booster steering hose with 12#
non-adjustable wrench.
Torque: 25±5 Nm
4.4 Remove the fixing screws above the right bracket of power
steering gear with 13# socket.
Torque: 100±10 Nm
4.5 Remove the fixing screws under the right bracket of power
steering gear with 13# socket.
Torque: 100±10 Nm
